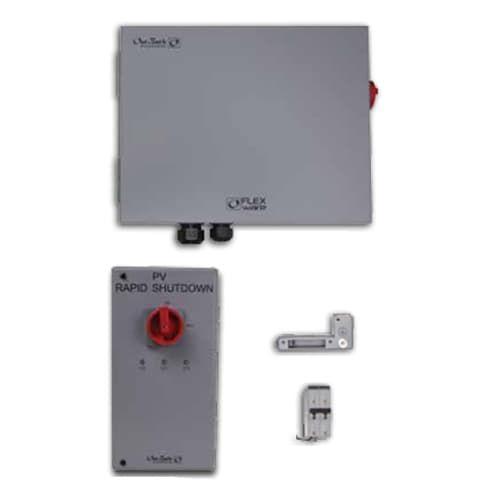

Outback Power, ICSPLUS-4, ICS Plus PV rapid shutdown and AFCI system package for battery-based PV systems. Compatible with up to twenty-four strings of PV source circuits (four charge controllers). Includes four FWPV6-FH600-SDA combiner boxes, one RSI, one BKR-CTRL-DC and one PNL-75Q-DC-RT.
Manufacturer Info
FLEXware ICS Plus
FLEXware ICS Plus is the first end-to-end solution listed to UL 1741 with photovoltaic rapid shutdown systems (PVRSS) for both battery-based and grid-direct solar systems. This solution meets the following 2014 National Electric Code (NEC) requirements:
NEC 690.11-Arc fault protection (protects against arc faults due to loose connections, damaged wires or other DC component failures)
NEC 690.12-Rapid shutdown (provides a means for first responders to safely de-energize controlled conductors)
NEC 690.15-DC combiner disconnect (opens all ungrounded circuit conductors from all sources of power)
The FLEXware ICS Plus is rated to 600VDC for integration in a wide range of systems and designed for ease of service and clean wire management. Packaged systems include easy-to-order, complete solutions for battery-based systems requiring one, two or four combiner boxes, while individual components can be ordered for alternative system needs, including use with grid-direct PV inverters.
When used with OutBack power conversion and energy storage components, the system will represent the only single-brand UL and NEC-compliant solution from rooftop to battery.
Product Highlights
FLEXware ICS Plus is the first end-to-end solution listed to UL 1741 with photovoltaic rapid shutdown systems (PVRSS) for both battery-based and grid-direct solar systems. This solution meets the following 2014 National Electric Code (NEC) requirements:
NEC 690.11-Arc fault protection (protects against arc faults due to loose connections, damaged wires or other DC component failures)
NEC 690.12-Rapid shutdown (provides a means for first responders to safely de-energize controlled conductors)
NEC 690.15-DC combiner disconnect (opens all ungrounded circuit conductors from all sources of power)
The FLEXware ICS Plus is rated to 600VDC for integration in a wide range of systems and designed for ease of service and clean wire management. Packaged systems include easy-to-order, complete solutions for battery-based systems requiring one, two or four combiner boxes, while individual components can be ordered for alternative system needs, including use with grid-direct PV inverters.
When used with OutBack power conversion and energy storage components, the system will represent the only single-brand UL and NEC-compliant solution from rooftop to battery.
Product Highlights
- First end-to-end solution listed to UL 1741 with photovoltaic rapid shutdown systems (PVRSS) for both battery-based and grid-direct solar systems
- Arc fault circuit interrupter (AFCI) listed to UL1699B with local and remote indication
- Type 3R enclosures rated for indoor or outdoor installation
- Flexible design-install the combiner box vertically or horizontally and mount to racking or under an array
- Interoperable with compatible third-party PV rapid shutdown devices (PVRSE with dry contact)
- Three complete packages simplifies the design and ordering process
- ICS Plus Spec Sheet | Download
- ICS Plus Features Flyer | Download
- ICS Plus Quick Start Guide | Download
- ICS Plus Manual | Download
- ICS Plus Declaration of Conformity | Download
