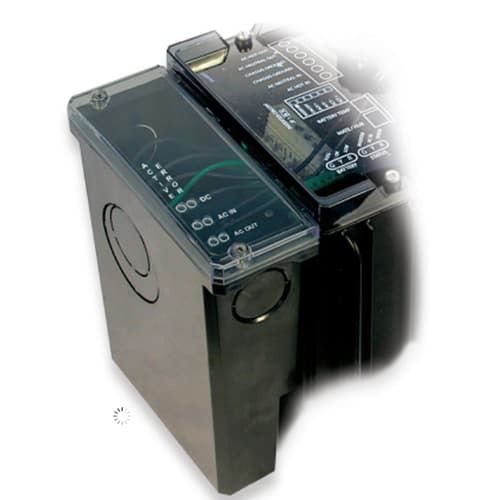

Outback Power, FW-SP-250, FLEXware 250 Compatible FLEXware Surge Protector

  • Model: FW-SP-250
  • Manufactured by: Outback Power
  • Condition: New
  • Estimated Delivery: Nov 26th - Dec 2nd
  • In Stock
Price:

$248.23 $190.94

Manufacturer Info

(image for) Outback Power
The OutBack Power FLEXware Surge Protector is a seamlessly integrated balance-of-system component for the FX Series Inverter/Charger. The FLEXware Surge Protector was designed by OutBack engineers specifically for OutBack FX Series Inverter/Chargers, and provides multiple levels of protection for the vital electrical components of the Inverter/Charger in the event of an electrical surge or nearby lightning strike.

The sophisticated design allows for both AC and DC protection on multiple circuits (two AC and one DC) via thermally fused Metal Oxide Varistors (MOVs). LED visual indicators provide at-a-glance status monitoring allowing system users to determine FLEXware Surge Protector operational status in real-time. The FLEXware Surge Protector is designed to operate between 120 to 240 VAC at 50/60 Hz and 12 to 48 VDC. Its multiple mounting configurations allow it to be incorporated into any OutBack system. The FW-SP-ACA mounts inside the FW-ACA for FLEXware 500 and 1000 systems, while the FW-SP-250 is designed to mount inside the FLEXware 250 AC Side Breaker Enclosure allowing for quick installations that keep your system protected and looking great.

The OutBack Power FLEXware Surge Protector is the only choice when you want to protect your FX Series Inverter/Charger from the harmful effects of transient power surges. Ease of installation and seamless integration make it the ideal addition to your OutBack system.

Product Highlights
  • Integrated balance-of-system component for FX Series Inverter/Charger
  • From 150VDC breakers for low voltage PV systems
  • High voltage PV systems
  • Designed to survive in outdoor environments
  • User Guide | Download
  • FLEXware Surge Protector Spec sheet - English | Download
 FW-SP-ACAFW-SP-250FW-SP-R
Nominal Voltage 120-240VAC/12-48VDC 120-240VAC/12-48VDC 120-240VAC/12-48VDC
Voltage Protection Level 390VAC/150VDC 390VAC/150VDC 390VAC/150VDC
AC or DC AC/DC AC/DC AC/DC
Maximum Surge Current (8/20) 30kA per circuit 30kA per circuit 30kA per circuit
Energy Rating 2500 joules 2500 joules 2500 joules
Frequency 50/60 Hz 50/60 Hz 50/60 Hz
Protection Type Thermally Fused MOV Thermally Fused MOV Thermally Fused MOV
Number of Protected Circuits Two AC & One DC Two AC & One DC Two AC & One DC
Mounting FW-ACA FW-250 Replacement Board (FW-SP-ACA, FW-SP-250)
Unit Weight 1 lbs 4 oz (.57 kg) 1 lbs 2.5 oz (.52 kg) 7.5 oz (.21 kg)
Shipping 2 lbs 2 oz (.96 kg) 2 lbs (.91 kg) 1 lb 2.2 oz (.516 kg)
Dimensions (H x W x L) Unit 8.5 x 6.75 x 2.5" (21.59 x 17.15 x 6.35 cm) 5.5 x 6.5 x 7.5" (13.97 x 16.51 x 19.05 cm) 7.75 x 5.5 x 1.5" (19.69 x 13.97 x 3.81 cm)
Shipping 10.13 x 9.13 x 5.75" (25.72 x 23.2 x 14.6 cm) 10 x 7.25 x 6" (25.4 x 18.42 x 15.24 cm) 9.38 x 7.25 x 2.5" (23.81 x 18.42 x 6.35 cm)
