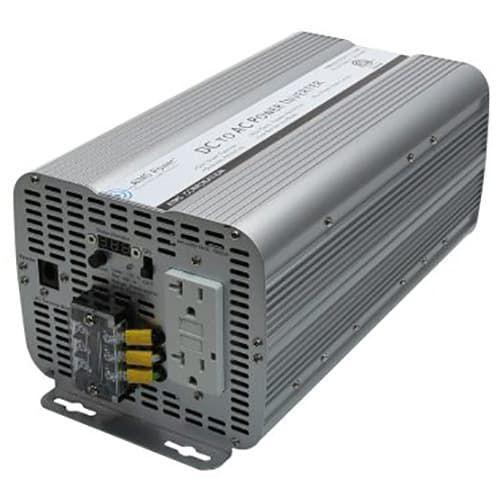

This 3600 Watt Modified Sine Inverter has a few unique features. First, the unit is ETL Listed and conforms to UL 458 Standards. The AIMS 3600 Watt also conforms to CSA Standard C22.2 No. 107.1-01. Canada. At AIMS Power, we listen to our customers and as a result, AIMS designed this 3600 Watt UL listed modified sine inverter with our customers in mind.

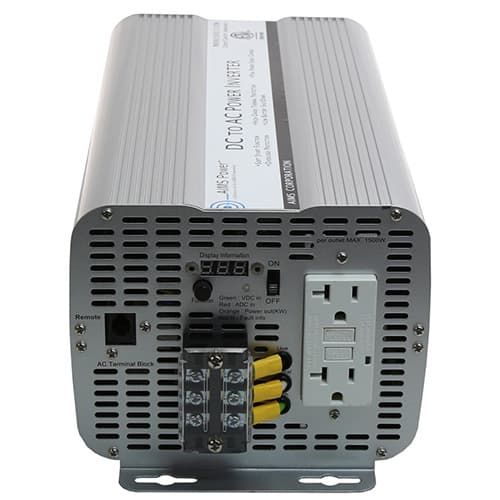

AIMS has produced a high quality unit that is also available in two other sizes 2000 and 3000 watts. It features a 20 amp GFCI outlet. That is exactly like the outlets you find in your bathroom and are able to be reset if they "pop" for safety. This inverter also has a direct connect AC terminal block, which delivers the full 3600 watts to a single source. The compact design is lightweight and durable, taking up less space in your work environment.
Features
AIMS has produced a high quality unit that is also available in two other sizes 2000 and 3000 watts. It features a 20 amp GFCI outlet. That is exactly like the outlets you find in your bathroom and are able to be reset if they "pop" for safety. This inverter also has a direct connect AC terminal block, which delivers the full 3600 watts to a single source. The compact design is lightweight and durable, taking up less space in your work environment.
Features
- 3600W max continuous power
- Modified sine wave
- Digital Display
- LED Monitoring Lights
- Dual GFCI Outlet
- AC Direct connect terminal block
- Over Temperature protection
- Over Load protection
- Thermal Cooling fan operation
- Internally fuse protected
- ac output short circuit protection
- Aluminum case for optimal cooling
- Pre-slotted mounting plate
- Instruction manual
- Free tech support
- 2 Year Warranty Parts and Labor
- ETL Listed to UL 458 Standards and CSA 22.2
- Product Manual | Download
- Continuous output power: 3600 Watts
- Surge power capability (peak power): 7200 Watts
- dc input / operating voltage: 10 to 15 Volts
- Output voltage: 120 Volts ac
- Output frequency: 60 Hz +/1 .5 Hz
- Battery low voltage alarm: 10.5 +/- 0.5 Volts
- Battery low voltage shutdown: 10.0 +/- 0.5 V
- No load minimum operating temperature: 25 degrees F
- Full load maximum operating temperature: 140 degrees F (automatic shutdown)
- Efficiency: 90%
- No load draw: 2.0A
- AC amps: 30
- DC amps: 300
- AC Output Socket Type: dual GFCI and AC direct connect terminal
- High input voltage protection: 15V
- Low input voltage shutdown: 10V
- Internal fuse protection
- Product size (L x W x H): 14.5 X 6.62 X 5.6
- Weight: Unit: 9.04 lbs Boxed: 12 lbs
- ETL Listed to UL458 Standards - CSA 22.2
