Manufacturer Info

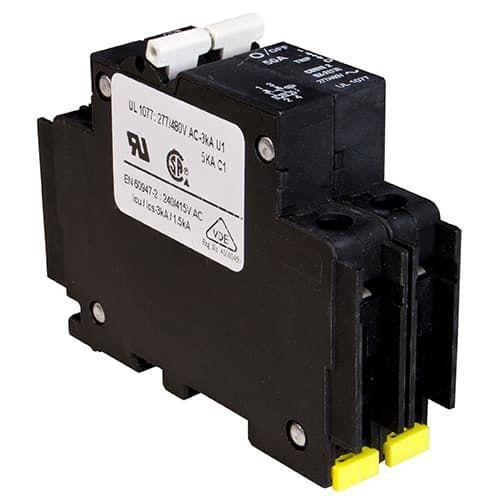

30, 50, 60 amp din rail mount 120/240 VAC Supplementary protection 1077 two pole.
3,000 AIC
MidNite's breakers are rated to break the full rated load at the rated voltage repeatedly, with NO DAMAGE. Always use a properly sized breaker for disconnecting.
All MidNite circuit breakers can be used at 100% rated current when mounted in a MidNite enclosure.
Breaker Torque Value: 20 In-Lbs (2.3NM)
3,000 AIC
MidNite's breakers are rated to break the full rated load at the rated voltage repeatedly, with NO DAMAGE. Always use a properly sized breaker for disconnecting.
All MidNite circuit breakers can be used at 100% rated current when mounted in a MidNite enclosure.
Breaker Torque Value: 20 In-Lbs (2.3NM)
- Environmental Rating - Type 1 (Indoor)
- Listed for US & Canada
- MNEPV1 to MNEPV63 Dim Drawing
- Q-Series Breaker Specifications
- Breaker and Busbar Torque Specs
