Manufacturer Info

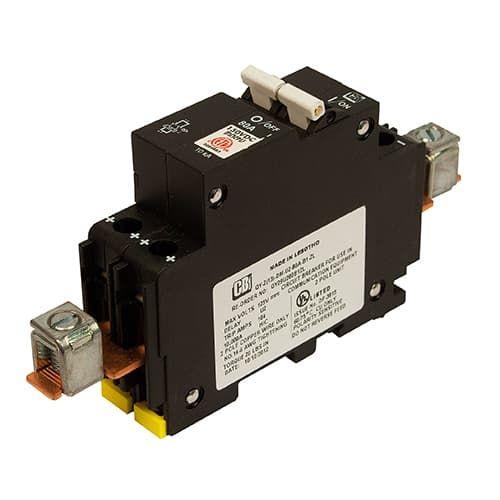

80 or 100 amp Din rail mount breaker.
10,000 AIC.
MidNite's breakers are rated to break the full rated load at the rated voltage repeatedly, with NO DAMAGE. Always use a properly sized breaker for disconnecting.
MNEPV breakers are the same as CBI QY breakers except the standard used is inadequate for the solar industry. MidNite breakers have been evaluated by ETL to 150VDC and are listed for US and Canada. All of the NRTL listings still apply. Breakers ordered under the CBI part numbering system will not be listed for 150VDC and in many cases are not suitable for the solar industry.
10,000 AIC.
MidNite's breakers are rated to break the full rated load at the rated voltage repeatedly, with NO DAMAGE. Always use a properly sized breaker for disconnecting.
MNEPV breakers are the same as CBI QY breakers except the standard used is inadequate for the solar industry. MidNite breakers have been evaluated by ETL to 150VDC and are listed for US and Canada. All of the NRTL listings still apply. Breakers ordered under the CBI part numbering system will not be listed for 150VDC and in many cases are not suitable for the solar industry.
- Accepts up to #2 wire.
- Breaker Torque Value: 20 In-Lbs (2.3NM)
- Environmental Rating - Type 1 (Indoor)
- Listed for US & Canada
- ETL Breaker Tests
- MNEPV80 and MNEPV100 Dim Drawing
- MNPV80 - 100 Instructions
- Q-Series Breaker Specifications
- Breaker and Busbar Torque Specs
