Manufacturer Info

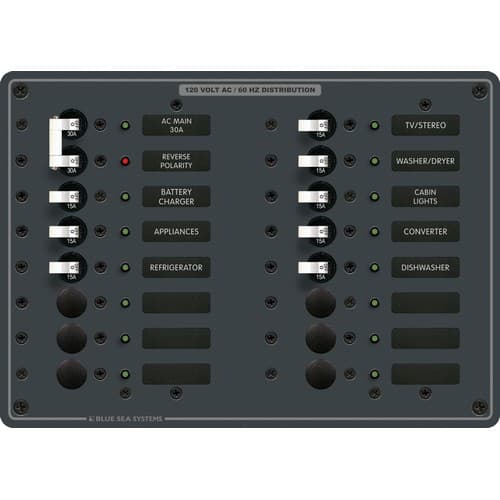

Features
- Red reverse polarity indicating LED
- All hot, neutral and safety ground buses installed, fully pre-wired
- All circuit label positions are backlit on standard panels - No kit required
- "ON" indicating LEDs installed in all circuit positions
- Cutout Templates
- Instructions
| Specifications | |
|---|---|
| Positions | 14 |
| Nominal Voltage | 120V AC |
| Height | 7.50in (190.5 mm) |
| Width | 10.50in (266.7 mm) |
| Weight | 3.74lb (1.7 kg) |
| Included | ||
|---|---|---|
| Qty | PN | Product |
| 1 | 8031 | Basic AC Panel Label Set - 30 Labels |
| 15 | 8034 | LED - 120V AC Green |
| 1 | 8066 | LED - 120V AC Red |
| 8 | 7210 | A-Series White Toggle Circuit Breaker - Single Pole 15A (Branch) |
| 1 | 7238 | A-Series White Toggle Circuit Breaker - Double Pole 30A (Main) |
