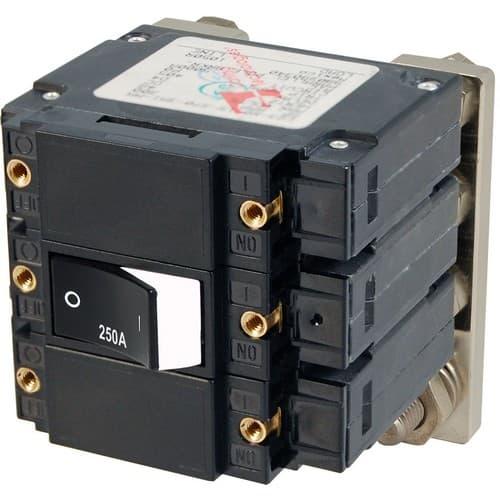

Blue Sea Systems, 7477, C-Series Flat Rocker Circuit Breaker - Triple Pole 250A
Manufacturer Info
Features
- Paralleled poles have 5/16" stud on bus
- Rocker actuator is flush in the ON position, eliminating the risk of accidental switching
- Color actuator indicates OFF position
- Provides overcurrent protection for inverters, bow thrusters, and windlasses
- Combines switching and circuit protection into a single device
- Trip Free cannot be held closed after trip
- Cutout Templates
| Specifications | |
|---|---|
| Amperage | 250A DC |
| Actuator Style | Flat Rocker |
| Poles | 3 |
| Maximum Voltage | 48V DC |
| Circuit Breaker Type | Magnetic Hydraulic - trip free |
| Terminal Stud Torque | 35 in-lb (3.95 Nm) |
| Interrupt Capacity | 5000A @ 48V DC |
| Minimum Operating Temperature | -40 C |
| Maximum Operating Temperature | 85 C |
| Mounting Screw | 6-32 Stainless Steel |
| Mounting Screw Torque | 6 in-lb (0.68 Nm) |
| Switching Cycles | 10000 |
| Terminal Stud | 1/4-20 Tin-Plated Brass |
| Weight | 1.35lb (0.61 kg) |
