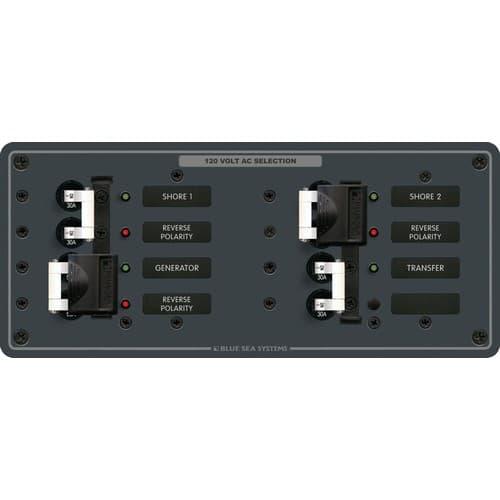

Features
- Double pole AC main circuit breakers with installed lockout slide
- Prevents connecting both AC sources simultaneously
- Red reverse polarity indicating LED
- All hot, neutral and safety ground buses installed, fully pre-wired
- All circuit label positions are backlit on standard panels - No kit required
- "ON" indicating LEDs installed in all circuit positions
- Cutout Templates
| Specifications | |
|---|---|
| Source Selection | 3 |
| Nominal Voltage | 120V AC |
| Height | 4.50in (114.3 mm) |
| Width | 10.50in (266.7 mm) |
| Weight | 10.50lb (4.76 kg) |
| Included | ||
|---|---|---|
| Qty | PN | Product |
| 1 | 8031 | Basic AC Panel Label Set - 30 Labels |
| 3 | 8066 | LED - 120V AC Red |
| 4 | 8034 | LED - 120V AC Green |
| 2 | 7238 | A-Series White Toggle Circuit Breaker - Double Pole 30A (Main) |
| 1 | 7242 | A-Series White Toggle Circuit Breaker - Double Pole 50A (Main) |
| 1 | 7238 | A-Series White Toggle Circuit Breaker - Double Pole 30A (Transfer) |
