Manufacturer Info
Features

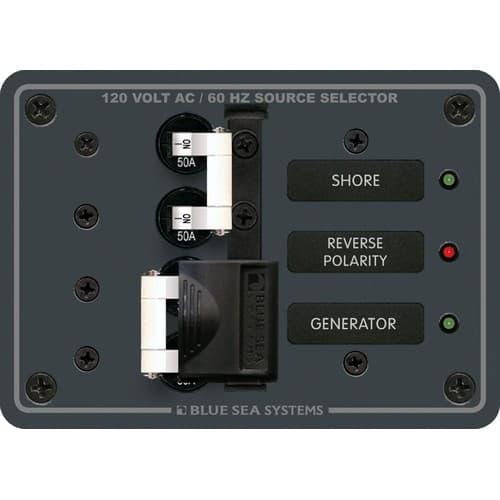

- Double pole AC main circuit breakers with installed lockout slide
- Prevents connecting both AC sources simultaneously
- Maximum panel amperage - 50 Amperes
- Red reverse polarity indicating LED
- All hot, neutral and safety ground buses installed, fully pre-wired
- All circuit label positions are backlit on standard panels - No kit required
- "ON" indicating LEDs installed in all circuit positions
- Cutout Templates
- Cutout Templates
| Specifications | |
|---|---|
| Source Selection | 2 |
| Nominal Voltage | 120V AC |
| Height | 3.75in (95.25 mm) |
| Width | 5.25in (133.35 mm) |
| Weight | 1.84lb (0.83 kg) |
| Included | ||
|---|---|---|
| Qty | PN | Product |
| 2 | 7242 | A-Series White Toggle Circuit Breaker - Double Pole 50A |
| 1 | 8031 | Basic AC Panel Label Set - 30 Labels |
| 2 | 8034 | LED - 120V AC Green |
| 1 | 8066 | LED - 120V AC Red |
| Optional Accessories | |
|---|---|
| 4026 | AC Isolation Cover - 5-1/4 x 3-3/4 x 3 |
