Features

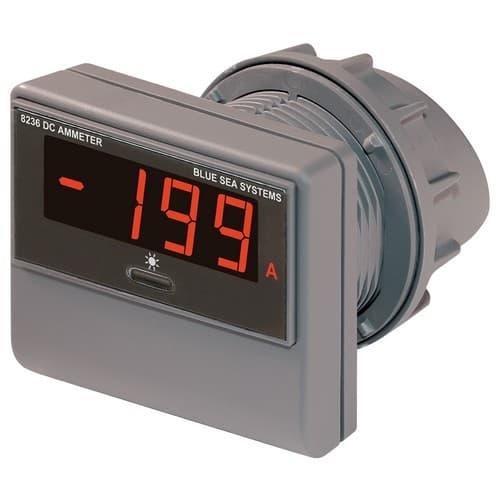

- Displays amperage from -500 to +500 Amps
- 3 levels of display brightness
- Splashproof front
- Manual sleep mode blanks display for power conservation
- Standard meter operates in negative side of circuit only. Shunt Shifter required for positive side installation such as alternators
- Includes 500 Amp shunt
- Cutout Templates
| Specifications | |
|---|---|
| Meter | Current |
| Function | to 500A |
| Alarms | High and low voltage |
| Input Voltage | 8-32V DC |
| Maximum Power Consumption | 1 Watt |
| Minimum Power Consumption | 0.60 Watt |
| Sleep Mode | Manual |
| Weight | 1.05lb (0.48 kg) |
| Included | ||
|---|---|---|
| Qty | PN | Product |
| 1 | 8255 | DC Digital Current Shunt - 500A |
| Optional Accessories | |
|---|---|
| 8013 | Blank Meter Panel - Single |
| 1475 | Mounting Panel Single Meter |
