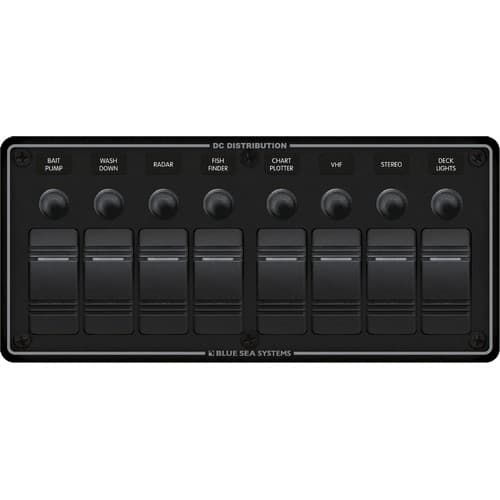

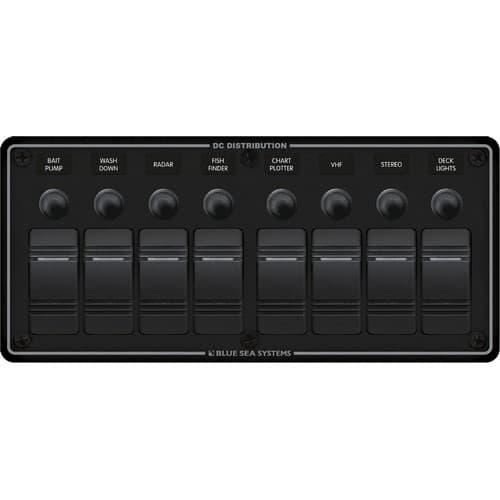

Blue Sea Systems, 8371, Water Resistant Circuit Breaker Panel 8 Position-Black
Manufacturer Info
Features
- Designed for flybridge and open cockpit applications
- Panel front is rated IP66 Protected against powerful water jets
- Ignition protected safe for installation aboard gasoline powered boats
- ON-OFF Contura Switches
- ON indicating LEDs embedded in switch
- Watertight mounting gasket
- Push Button Reset-Only circuit breakers with waterproof boots
- Cutout Templates
- Instructions
| Specifications | |
|---|---|
| Weatherproof | Water Resistant |
| Positions | 8 |
| Nominal Voltage | 12V DC24V DC |
| Panel Cumulative Rating | 90A |
| Switch Rating | 20A @ 12V DC15A @ 24V DC |
| Height | 4.25in (107.95 mm) |
| Width | 9.37in (238 mm) |
| Depth | 3.25in (82.55 mm) |
| Weight | 1.70lb (0.77 kg) |
| Included | ||
|---|---|---|
| Qty | PN | Product |
| 1 | 8214 | Black 60 Label Set |
| 8 | 7056 | Push Button Reset Only Quick Connect Circuit Breaker - 15 Amps |
| 8 | Contura Switch SPST Black - OFF-ON |
| Optional Accessories | |
|---|---|
| 1039 | Fast Charge - Dual USB Charger Switch Mount |
