Manufacturer Info
Features

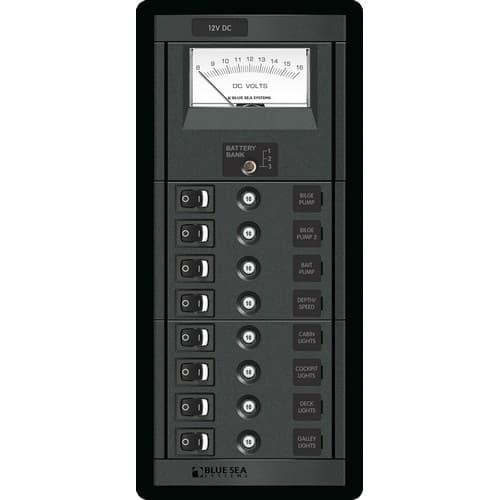

- Available with voltmeters and ammeters
- Panels with meters include a toggle switch to monitor voltage on up to three battery banks
- Includes 4205-Square Format Label Set
- Cutout Templates
- Wiring Schematic
| Specifications | |
|---|---|
| Positions | 8 |
| Nominal Voltage | 12V DC |
| Maximum Amperage | 80A |
| Height | 10.75in (273.05 mm) |
| Width | 4.88in (123.95 mm) |
| Depth | 3.50in (88.9 mm) |
| Weight | 3.66lb (1.66 kg) |
| Included | ||
|---|---|---|
| Qty | PN | Product |
| 8 | 7054 | Push Button Reset Only Quick Connect Circuit Breaker - 10 Amps |
| 8 | 7480 | Rocker Switch SPST - ON-OFF |
| 1 | 4205 | Basic DC Label Kit - 30 Black Square Labels |
| 1 | DC Analog Voltmeter - 8 to 16V DC (Meter) |
| Optional Accessories |
|---|
| Any Conversion Kits |
