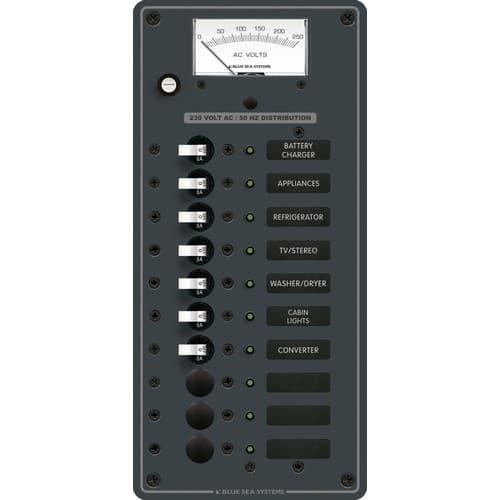

![Blue Sea Systems, 8578, AC 10 Position [European]](/images/blue_sea/8578.jpg)
Manufacturer Info
Features
- All hot, neutral, and safety ground buses installed, fully pre-wired
- All circuit label positions are backlit on standard panels - No kit required
- "ON" indicating LEDs installed in all circuit posistions
- Maximum panel amperage - 100 Amperes
- Cutout Templates
- Instructions
| Specifications | |
|---|---|
| Positions | 10 |
| Nominal Voltage | 230V AC |
| Maximum Amperage | 100A |
| Height | 11.25in (285.75 mm) |
| Width | 5.25in (133.35 mm) |
| Weight | 3.00lb (1.36 kg) |
| Included | ||
|---|---|---|
| Qty | PN | Product |
| 7 | 7299 | A-Series White Toggle Circuit Breaker - Single Pole 8A |
| 1 | 8031 | Basic AC Panel Label Set - 30 Labels |
| 10 | 8134 | LED - 230V AC Green |
| 1 | 9354 | AC Voltmeter - 0 to 250V AC (Meter) |
