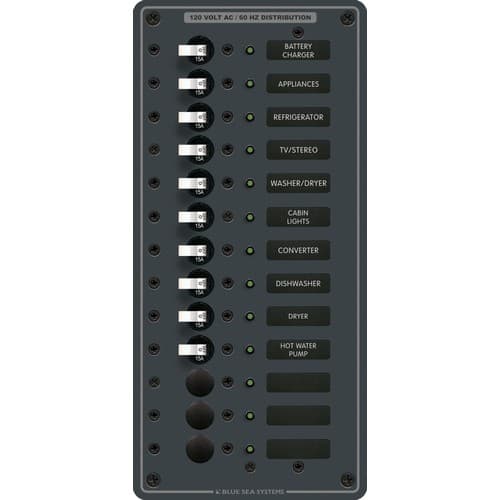

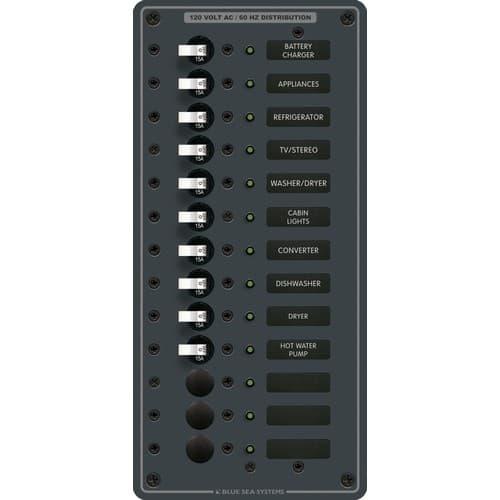

Features
- All hot, neutral, and safety ground buses installed, fully pre-wired
- All circuit label positions are backlit on standard panels - No kit required
- "ON" indicating LEDs installed in all circuit posistions
- Maximum panel amperage - 100 Amperes
- Cutout Templates
- Cutout Templates
| Specifications | |
|---|---|
| Positions | 13 |
| Nominal Voltage | 120V AC |
| Maximum Amperage | 100A |
| Height | 11.25in (285.75 mm) |
| Width | 5.25in (133.35 mm) |
| Weight | 2.81lb (1.27 kg) |
| Included | ||
|---|---|---|
| Qty | PN | Product |
| 1 | 8031 | Basic AC Panel Label Set - 30 Labels |
| 13 | 8034 | LED - 120V AC Green |
| 10 | 7210 | A-Series White Toggle Circuit Breaker - Single Pole 15A (Branch) |
