Manufacturer Info

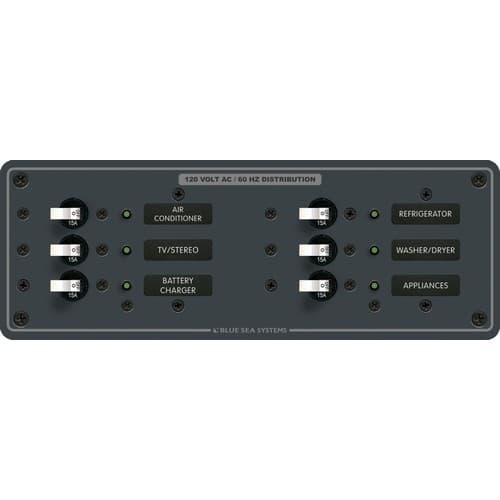

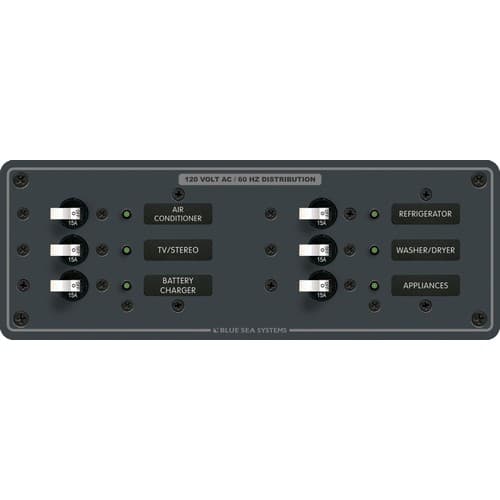

Features
- All hot, neutral, and safety ground buses installed, fully pre-wired
- All circuit label positions are backlit on standard panels - No kit required
- "ON" indicating LEDs installed in all circuit posistions
- Maximum panel amperage - 100 Amperes
- Cutout Templates
- Instructions
| Specifications | |
|---|---|
| Positions | 6 |
| Nominal Voltage | 120V AC |
| Maximum Amperage | 100A |
| Height | 3.75in (95.25 mm) |
| Width | 10.50in (266.7 mm) |
| Weight | 2.22lb (1.01 kg) |
| Included | ||
|---|---|---|
| Qty | PN | Product |
| 6 | 7210 | A-Series White Toggle Circuit Breaker - Single Pole 15A |
| 1 | 8031 | Basic AC Panel Label Set - 30 Labels |
| 6 | 8034 | LED - 120V AC Green |
