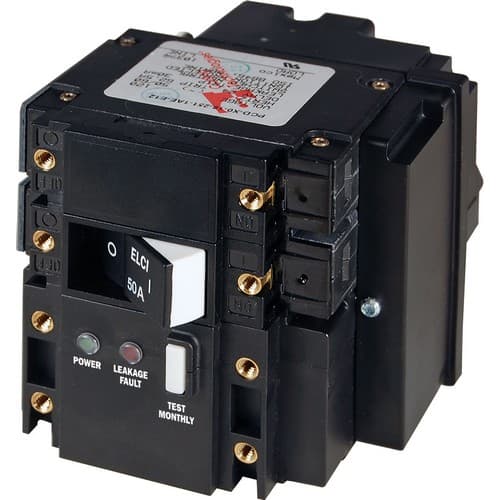

Blue Sea Systems, 3093, C-Series ELCI Circuit Breaker - Double Pole 240V AC 50A
- Model: 3093
- GTIN: 00632085030933
- Manufactured by: Blue Sea Systems
- Condition: New
-
Estimated Delivery:
Nov 22nd - Nov 28th
- Estimated Delivery: 1 to 2 Weeks
- In Stock
- Out of Stock
-
Lead Time To Ship May Vary
Features- Trips on short circuit, overload, or leakage to ground
- Front panel mount installed in a power distribution panel
- Cutout Templates
| Specifications | | Amperage | 50A |
| Actuator Style | Flat Rocker |
| Nominal Voltage | 240V AC per pole |
| Poles | 2 |
| Ignition Protected | Yes |
| Circuit Breaker Type | Magnetic Hydraulic - trip free |
| Interrupt Capacity | 5000A |
| Minimum Operating Temperature | -35 C |
| Maximum Operating Temperature | 66 C |
| Leakage Trip Amps | 30mA |
| Mounting Screw | #6-32 Stainless Steel |
| Mounting Screw Torque | 6 in-lb (0.68 Nm) |
| Switching Cycles | 10000 |
| Weight | 0.85lb (0.39 kg) |
| Included With | | 3120 | SMS Surface Mount System Panel Enclosure - 240V AC / 50A ELCI Main - For Isolation Transformer |
