Manufacturer Info

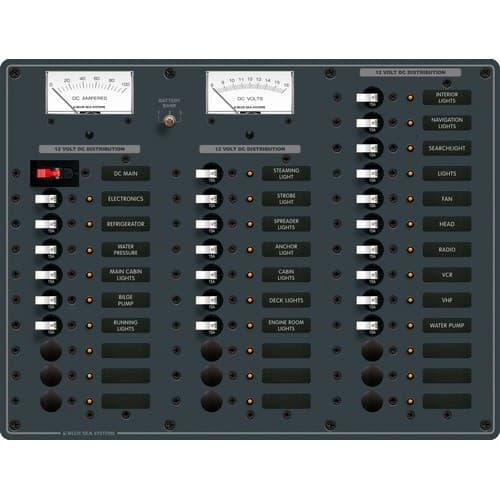

Features
- All positive, negative and grounding buses installed, fully pre-wired
- Panels with meters include toggle switch for mounting up to 3 battery banks
- All panels with analog meters are owner upgradable to 24 Volts with 8240 or 8243 (18-32V DC meters)
- All circuit label positions are backlit on standard panels - No kit required
- "ON" indicating LEDs installed in all circuit positions
- Cutout Templates
- Instructions
Specifications | |
---|---|
Positions | 32 |
Nominal Voltage | 12V DC |
Maximum Amperage | 100A |
Height | 11.25in (285.75 mm) |
Width | 14.75in (374.65 mm) |
Depth | 3.00in (76.2 mm) |
Weight | 8.60lb (3.9 kg) |
Included | ||
---|---|---|
Qty | PN | Product |
1 | 8030 | Basic DC Panel Label Set - 30 Labels |
23 | 7210 | A-Series White Toggle Circuit Breaker - Single Pole 15A (Branch) |
1 | 7250I | Circuit Breaker CA1 100A Red IP (Mainn) |
1 | DC Analog Voltmeter - 8 to 16V DC (Meter) | |
1 | 8017 | DC Analog Ammeter - 0 to 100A with Shunt (Meter) |
