Manufacturer Info
Features

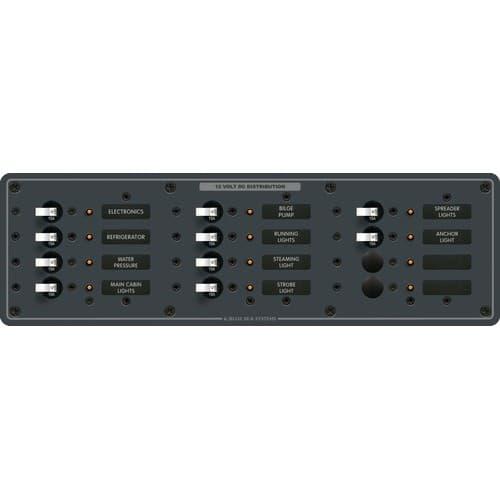

- All positive, negative and grounding buses installed, fully pre-wired
- Panels with meters include toggle switch for mounting up to 3 battery banks
- All panels with analog meters are owner upgradable to 24 Volts with 8240 or 8243 (18-32V DC meters)
- All circuit label positions are backlit on standard panels - No kit required
- "ON" indicating LEDs installed in all circuit positions
- Cutout Templates
- Instructions
| Specifications | |
|---|---|
| Positions | 12 |
| Nominal Voltage | 12V DC24V DC |
| Maximum Amperage | 100A100A per bus |
| Height | 3.75in (95.25 mm)4.50in (114.3 mm) |
| Width | 14.75in (374.65 mm)5.25in (133.35 mm) |
| Weight | 5.84lb (2.65 kg) |
| Included | ||
|---|---|---|
| Qty | PN | Product |
| 10 | 7210 | A-Series White Toggle Circuit Breaker - Single Pole 15A |
| 1 | 8030 | Basic DC Panel Label Set - 30 Labels |
