Manufacturer Info

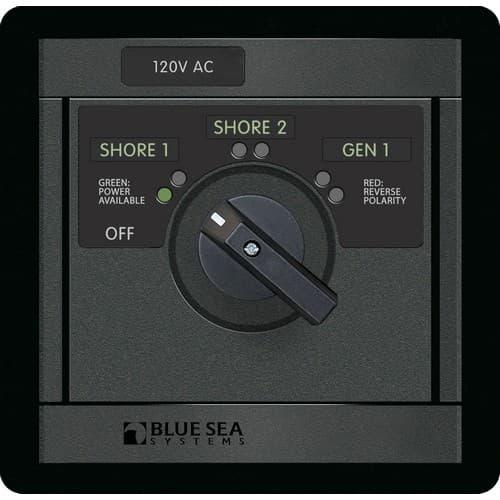

Features
- Switches three 120V AC sources
- Red reverse polarity LED indicators
- Green power available LED indicators
- Cutout Templates
- Wiring Schematic
| Specifications | |
|---|---|
| Source Selection | 3 |
| Nominal Voltage | 120V AC |
| Source In | 3 |
| Height | 4.75in (120.65 mm) |
| Width | 4.88in (123.95 mm) |
| Depth | 2.41in (61.21 mm) |
| Weight | 1.25lb (0.57 kg) |
| Included | ||
|---|---|---|
| Qty | PN | Product |
| 1 | 9010 | AC Rotary Switch - OFF + 3 Positions 120V AC 30A |
| Optional Accessories | |
|---|---|
| 1331 | AC Insulating Cover 1 Module |
