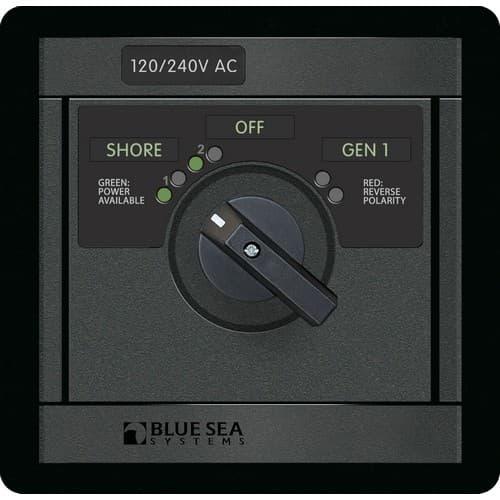

Blue Sea Systems, 1489, 120/240V AC Rotary 30A OFF + 2 Sources 2x120V/1x240V
Manufacturer Info
Features
- Switches between two 120V AC shore power sources and one 240V AC source to two 120V AC load groups
- Red reverse polarity LED indicators
- Green power available LED indicators
- Cutout Templates
- 360 Panel System Installation Manual
| Specifications | |
|---|---|
| Source Selection | 2 |
| Nominal Voltage | 240V AC |
| Source In | 3 |
| Height | 4.75in (120.65 mm) |
| Width | 4.88in (123.95 mm) |
| Depth | 2.98in (75.69 mm) |
| Weight | 1.20lb (0.54 kg) |
| Included | ||
|---|---|---|
| Qty | PN | Product |
| 1 | 6337 | AC Rotary Switch - OFF + 2 Positions 120V AC 30A |
| Optional Accessories | |
|---|---|
| 1331 | AC Insulating Cover 1 Module |
