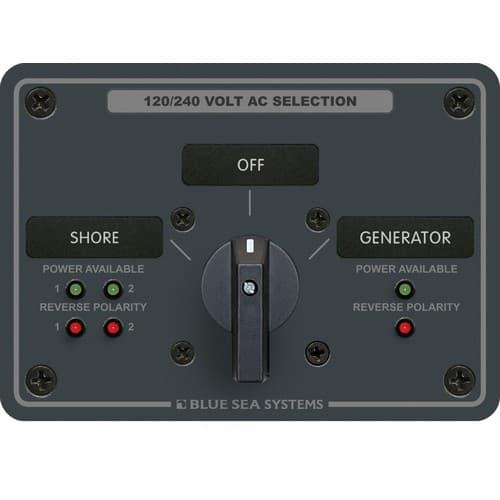

Blue Sea Systems, 8386, AC Rotary Switch Panel 30 Ampere 2 positions + OFF, 4 Pole
Manufacturer Info
Features
- Switches between 2 - 120 Volt AC shore power sources and 1 - 120/240 Volt AC source to 2 - 120V AC load groups
- Includes 9011 heavy duty industrial rated switch
- Two-part polyurethane slate gray finish
- Heavy 1/8" aluminum 5052 alloy
- Red reverse polarity LED indicators
- Green power available LED indicators
- Switches AC sources
- Compact solution when circuit protection is provided elsewhere
- Allows connecting one of two or three different AC sources to one circuit
- Includes heavy duty industrial-rated switch
- Red reverse polarity LED indicators
- Green power-available LED indicators
- Instructions
| Specifications | |
|---|---|
| Positions | 2 + OFF |
| Nominal Voltage | 240V AC |
| Poles | 4 |
| Maximum Amperage | 30A |
| Source In | 3 |
| Height | 3.75in (95.25 mm) |
| Width | 5.25in (133.35 mm) |
| Depth | 2.98in (75.69 mm) |
| Weight | 0.76lb (0.34 kg) |
| Included | ||
|---|---|---|
| Qty | PN | Product |
| 1 | 6337 | AC Rotary Switch - OFF + 2 Positions 120V AC 30A |
| 1 | 9583 | AC Rotary Panel Labels |
