Manufacturer Info
Features

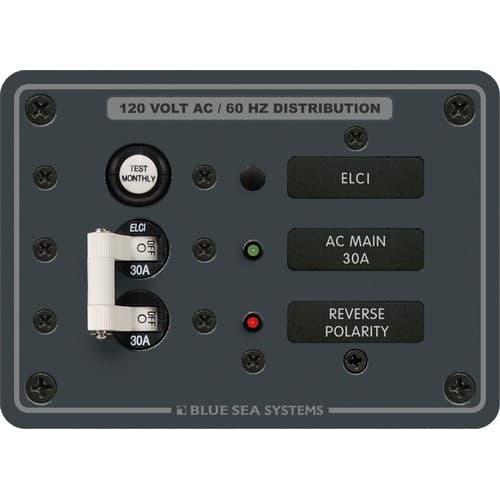

- One 30A AC ELCI Main Residual Current Circuit Breaker, leakage trip amperate - 30 mA
- ELCI provides overcurrent and leakage protection per ABYC E-11 for whole boat shore power protection
- Red "Reverse Polarity" LED
- All circuit label positions are backlit
- "ON" indicating LEDs
- Cutout Templates
- Instructions
- Instructions
| Specifications | |
|---|---|
| Nominal Voltage | 120V AC |
| Leakage Trip Amps | 30mA |
| Height | 5.25in (133.35 mm) |
| Width | 3.75in (95.25 mm) |
| Depth | 3.50in (88.9 mm) |
| Weight | 2.25lb (1.02 kg) |
| Included | ||
|---|---|---|
| Qty | PN | Product |
| 1 | 8034 | LED - 120V AC Green |
| 1 | 8066 | LED - 120V AC Red |
| 1 | 3106100 | A-Series ELCI Main Circuit Breaker - Double Pole 120V AC 30A |
