The images shown are for illustration purposes only and may not be an exact representation of the product

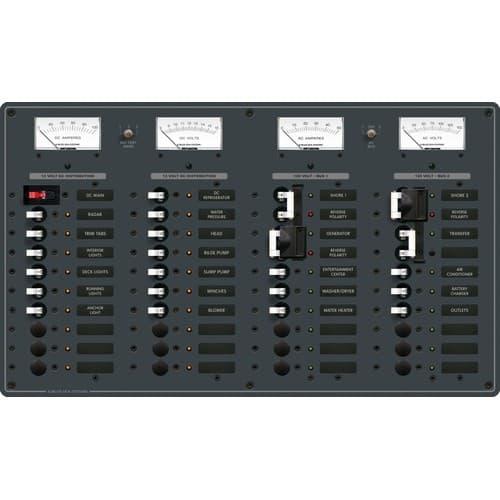

Blue Sea Systems, 8086, AC 3 Sources + 12 Positions/DC Main + 19 Position
- Model: 8086
- GTIN: 00632085080860
- Manufactured by: Blue Sea Systems
- Condition: New
-
Estimated Delivery:
Nov 22nd - Nov 28th
- Estimated Delivery: 1 to 2 Weeks
- In Stock
- Out of Stock
-
Lead Time To Ship May Vary
Price:
$2,484.01 $1,910.78
Features- All AC and DC buses installed and fully pre-wired
- Label backlighting pre-installed
- ON - indicating LEDs installed in all circuit positions
- 100 Ampere C-Series Toggle Circuit Breaker provides main circuit protection and switching for DC branch
- Cutout Templates
- Cutout Template
| Specifications | | Positions | 12 AC19 DC |
| Source Selection | 3 AC |
| Nominal Voltage | 120V AC12V DC |
| Height | 11.50in (292.1 mm) |
| Width | 19.50in (495.3 mm) |
| Depth | 3.00in (76.2 mm) |
| Weight | 12.45lb (5.65 kg) |
| Included | | Qty | PN | Product |
| 1 | 8030 | Basic DC Panel Label Set - 30 Labels |
| 1 | 8031 | Basic AC Panel Label Set - 30 Labels |
| 6 | 7210 | A-Series White Toggle Circuit Breaker - Single Pole 15A (AC Branch) |
| 2 | 7238 | A-Series White Toggle Circuit Breaker - Double Pole 30A (AC Main) |
| 1 | 7242 | A-Series White Toggle Circuit Breaker - Double Pole 50A (AC Main) |
| 1 | 9630 | AC Ammeter - 0 to 50A with Coil (AC Meter) |
| 1 | 9353 | AC Voltmeter - 0 to 150V AC (AC Meter) |
| 1 | 7238 | A-Series White Toggle Circuit Breaker - Double Pole 30A (AC Transfer) |
| 13 | 7210 | A-Series White Toggle Circuit Breaker - Single Pole 15A (DC Branch) |
| 1 | 7250I | Circuit Breaker CA1 100A Red IP (DC Main) |
| 1 | DC Analog Voltmeter - 8 to 16V DC (DC Meter) |
| 1 | 8017 | DC Analog Ammeter - 0 to 100A with Shunt (DC Meter) |
| Optional Accessories | | 4031 | AC Isolation Cover - 10 Position, 2 Columns |
Other Products in This Category
Blue Sea Systems, 1219, 12 Volt DC Main + 19 Positions/230 Volt AC Main + 6 Positions![(image for) Blue Sea Systems, 8186, AC 2 Sources + 12 Positions/DC Main + 19 Positions [European]](images/blue_sea/8186.jpg "Blue Sea Systems, 8186, AC 2 Sources + 12 Positions/DC Main + 19 Positions [European]")
Blue Sea Systems, 8186, AC 2 Sources + 12 Positions/DC Main + 19 Positions [European]

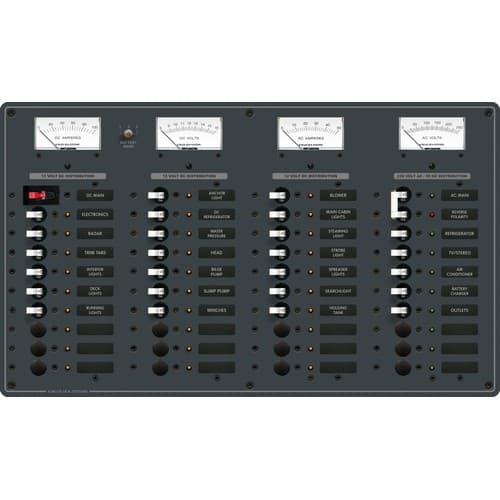

![(image for) Blue Sea Systems, 8195, AC Main + 8 Positions/DC Main + 29 Positions [European]](images/blue_sea/8195.jpg "Blue Sea Systems, 8195, AC Main + 8 Positions/DC Main + 29 Positions [European]")
