Manufacturer Info

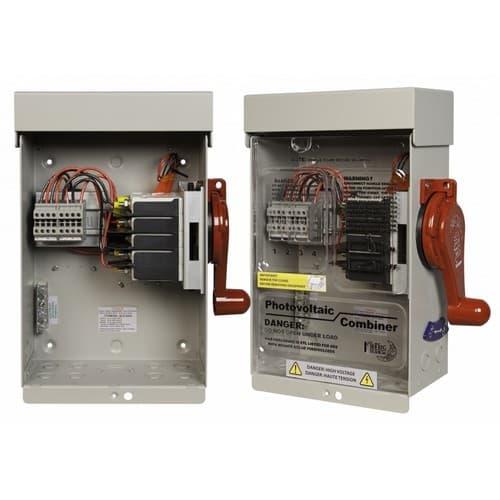

MNSOB3R-4P is a Disconnect switch. It has a 4 channel switch that breaks both the positive and negative of two isolated PV strings to a Transformer-less inverter. It has a combined rating of 600v and 20 amps as shipped. The switch is good for 100amps per side but the wire and terminal blocks limit it to 20 amps.
The MNSOB3R-4P's red handled is LOCKABLE IN THE OFF POSITION!
The MNSOB3R-4P's red handled is LOCKABLE IN THE OFF POSITION!
- Disconnect has built in shunt trip with positive feedback
- Birdhouse compatible
- Optional PV connected power supply
- See thru deadfront
- Type 3R aluminum enclosure (no rust, won't turn to dust)
- Load Break Rated
- Customer connections are #10 wire max on the regular version and #4 wire max on the 75 amp version
- 90 C connections
- Meets NEC 2011 and 2014 NEC 690.12
- Warranty - 5 yrs.
- Listed by ETL for US & Canada
- Made in the USA
- Rapid Shutdown Brochure | Download
- ATM SOBs | Download

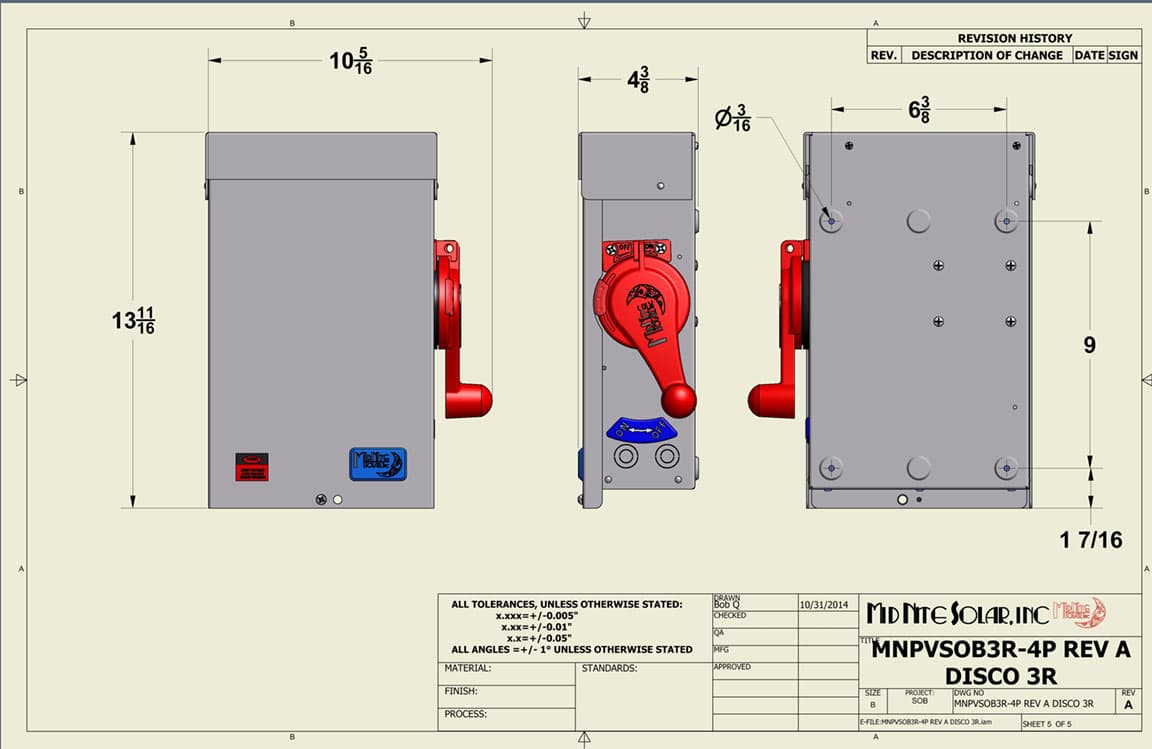

- MNPVSOB3R 4P REV A DISCO 3R | Download
- MNPSB Instructions | Download
- SOB Manual | Download
- MNBirdhouse | Download
- Shut Off Box - 4 Channel | Download
- Shut Off Box - 4 Channel with Ground | Download
- Four - 1/2" strain reliefs (MNSR-1000)
- Four - 1/2" LOCKNUTS
- One - Blue Wrench
