Manufacturer Info
Companion E-Panel for dual, triple and quad Sunny Island inverter systems. The Slave E-Panel is the same part number for all multiple SMA E-Panel systems regardless of off-grid, AC coupled, battery backup, 3 phase or quad.

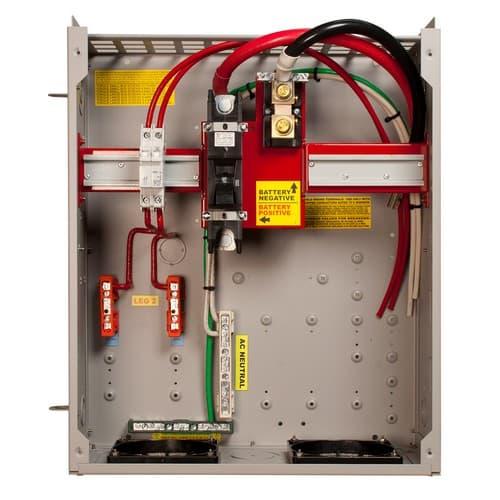

The MNE250SMA-SLAVE includes:
All breakers are hydraulic-magnetic and rated for continuous duty.
NOTE: A back plate (MNESMA-Short BP or MNESMA-Tall-BP) is recommended for the proper wiring alignment of the Sunny Island.
The MNE250SMA-SLAVE includes:
- Environmental Rating - Type 1 (Indoor)
- Separate 60amp, 120/240vac AC input and output breakers for the slave inverter

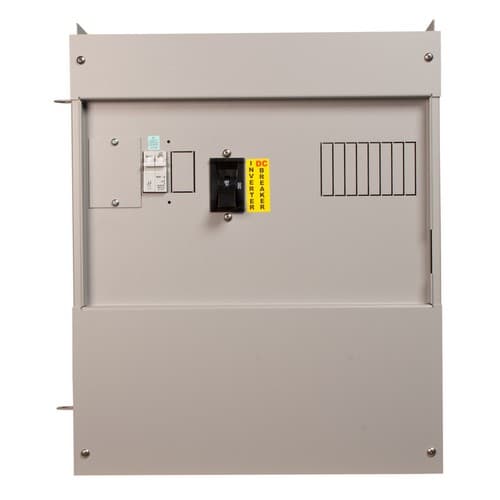

- 4 Extra spaces on the face to the Left of the main battery breaker for the white bodied (MNEACQZD) CBI Din Rail breakers
- 8 Extra spaces on the face to the Right of the main battery breaker for the black bodied (MNEAC or MNEPV) CBI Din Rail breakers
- 4 Spaces on the left side and 6 spaces on the right side of the chassis for the Panel mount 3/4 inch breakers (MNEDC)
- 250amp battery breaker with inverter cables
- 500amp/50mV shunt (MNSHUNT)
- Battery negative busbar
- AC input and Output busbars
- Neutral and ground busbars
- AC input and output wiring
- Comes with Red busbars installed
- Additional black and blue insulators included for tailoring to suit the application
- Space provided for 6 additional 1/2" wide din rail mount AC or DC breakers and up to 12 3/4" wide panel mount breakers
- Mounting hole spaces for additional terminal busbars
- Knockouts located for battery cables
- AC conduit connections
- Warranty - 5 yrs.
- Listed by ETL for US & Canada
- SMA E-Panel Dim Drawing | Download
- SMA-E-Panel-Manual | Download
- Classic Simple Flow Diagram | Download
All breakers are hydraulic-magnetic and rated for continuous duty.
NOTE: A back plate (MNESMA-Short BP or MNESMA-Tall-BP) is recommended for the proper wiring alignment of the Sunny Island.
