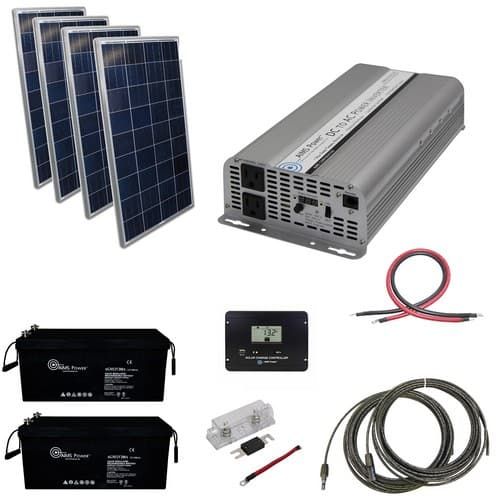

Kit includes
PV120MONO - 120W Solar Panel (each 4)
Solar Panels Mono
PVEXT100FT10AWG - PV Male and Female Cable (each 2)
Home Run Cables from solar panel to Solar Charge Controller
(1 Female to bare end / 1 Male to bare end)
MC4BRANCH2TO1 - MC4 Branch Connectors (set 1)
1 set (MMF and FFM)
Used for combining panels in parallel
SCC30AFM - Solar Charge Controller PWM (each 1)
30A, 12/24
Charges battery with solar power
PVSCC06FTSET - Charge Controller Cable 6 Foot (each 2)
10 AWG Lug to Bare End
Connects solar charge controller to battery
AGM12V200A - Sealed AGM Battery 200Ahr 12Vdc (each 2)
Stores DC Power
CBL01FT4AWGRED - Battery Bank Cable 1 foot jumper (each 1)
4 AWG Red Series connection for battery bank
ANL150KITJ - ANL 150 Amp Fuse + Holder Kit + 4 AWG Jumper (each 1)
Fuse goes between inverter and battery as a safety feature
CBL08FT4AWG - Power Inverter Cable 8 feet (each 1)
4 AWG Red + Black Pair
Battery bank to inverter
PWRINV250024W - Modified Sine Iverter (each 1)
2500 W, 24 Vdc to 120 Vac, 20 amps
