Features

• Digital Signal Processor controlled
• Computer programmable
• Temperature compensation
• Easy connection for one or two battery banks
• Universal worldwide AC input
• Simple front panel controls
• Digital Display of Voltage and Current (lengthens chassis)
• High Vibration Rugged Duty
• Dry Contact Output Fail Relay
• Carrying Handle
• Canbus / RS232 / Remote Control port
• Five year parts and labour warranty
• Product Datasheet | Download
• Product Manual | Download
• Mechanical Drawing | Download

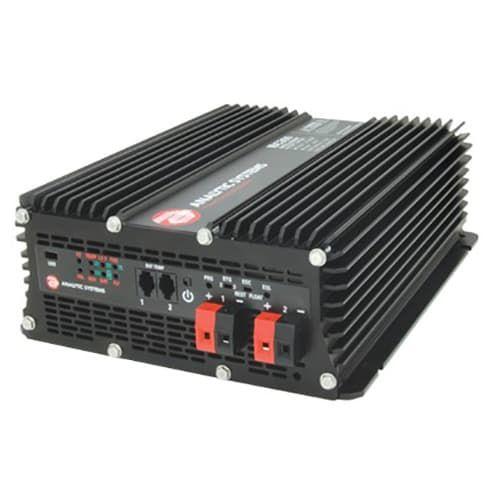

The IBC series chargers are fully Digital Signal Processor controlled and feature Universal Input Voltage from 85 to 264 VAC at 50 or 60 Hz with Active Power Factor Correction for the most efficient use of AC power.

Four charging profiles are available with easy front panel selection to handle most types of batteries from traditional Lead Acid, Sealed Lead Acid and even Lithium Ion.

The free to download "Power Wizard" software allows full programming and selection of each of the four profiles from a laptop computer. 300 and 1000 Watt models for 1 or 2 banks of 12, 24, 28, 32, 36 or 48 Volt batteries.

IBC320MW model available with MIL connectors, extra input and output filtering and sealed to IP66.

Function	Battery Charger
Conversion	AC to DC
Power Level	300
Input Volts	85 - 264 VAC
Power Factor Corrected (PFC)	Yes
Output Volts	32 VDC
Output Amps Continuous	8
Input/Output Isolation	Yes
Technology	Digital
Charging Stages	3
Temperature Compensation	Yes
Equalize	Yes
Battery Banks	2
Product Series on website	IBC320
Option Codes	'Z' No Conformal Coating (Any Model), 'Y' IP67 Certified, 'X' Ruggedized & Wide Temp, 'W' IP66 Water Resistant, 'V' Digital Volt/Ammeter, 'U' Safety Special Inspection (CSA/UL), 'O' Open Frame - No chassis, 'M' Military Rugged, 'J' MIL810 Tested Only, 'I' MIL461 Tested Only, 'E' European ROHS compliant, 'C' MIL461F & MIL810G Tested
