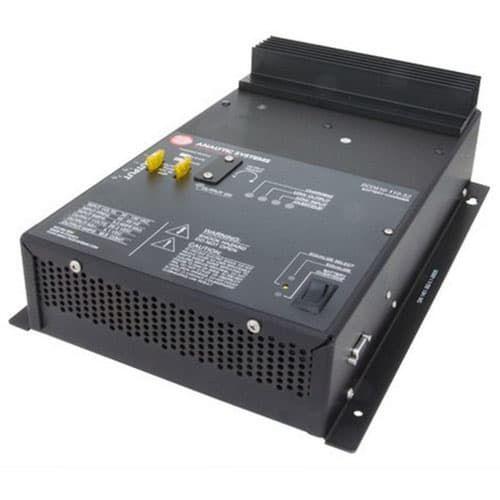

The images shown are for illustration purposes only and may not be an exact representation of the product

Analytic Systems, BCD610-300-12, 40A, 12V Out, 280-360V In, Iso DC/DC Battery Charger, 2 Bank

Model: BCD610-300-12
Manufactured by: Analytic Systems
Condition: New
Estimated Delivery: Apr 4th - Apr 10th
Estimated Delivery: 2 to 3 Weeks
In Stock
Out of Stock
Built to Order - This Product Cannot Be Cancelled Once Order Is Placed

Price:

$2,463.58 $1,895.06

Manufacturer Info

Other products

Features

600 watts of charging power
Isolated DC DC Charger
One, two or three bank charging
Manual equalization mode
Two or three stage charging profiles
Low EMI
Adjustable float voltage
Temperature compensation
Three year warranty (parts & labor)
Product Datasheet | Download
Product Manual | Download

The traditional BCD610 series chargers feature 600 watts of precision charging power for 1, 2 or 3 banks of batteries at 12, 24, 32, 36, 48 or 72(rail) volts DC. Models are available to operate from 110, 250 or 300 volts DC.

All models feature user selectable 2-stage or 3-stage charging profiles, temperature compensation and user initiated equalization for optimum charging and maximum battery life.

Function	Battery Charger
Conversion	DC to DC
Power Level	600
Input Volts	280 - 360 VDC
Output Volts	12 VDC
Output Amps Continuous	40
Input/Output Isolation	Yes
Technology	Analog
Charging Stages	3
Temperature Compensation	Yes
Equalize	Yes
Battery Banks	2
Product Series on website	BCD610
Option Codes	'Z' No Conformal Coating (Any Model), 'X' Ruggedized & Wide Temp, 'V' Digital Volt/Ammeter, 'U' Safety Special Inspection (CSA/UL), 'R' 19 Inch Rackmount, 'Q' 23 Inch Rackmount, 'O' Open Frame - No chassis, 'M' Military Rugged, 'J' MIL810 Tested Only, 'I' MIL461 Tested Only, 'G' GMDSS (DVAM & RCP1 Remote), 'E' European ROHS compliant, 'C' MIL461F & MIL810G Tested
