Outback Power, IBR-3-48-175, 3-shelf comprehensive battery enclosure with cabling, DC disconnects providing series string overcurrent protection, 48 VDC configuration
Manufacturer Info

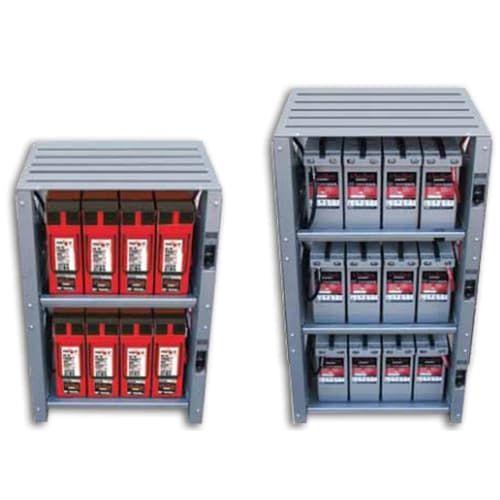

The OutBack Integrated Battery Rack system is a comprehensive battery enclosure solution with cell interconnects, cabling, and series string overcurrent protection and disconnects included, making it easy to order and install. All electrical connections are made at the factory and ship fully assembled with the exception of the batteries, which can be quickly added and connected on the jobsite.
Unlike typical steel racks, the OutBack design is crafted of powder coated aluminum, resulting in a rack that maintains a clean, durable appearance even in challenging environments while weighing less than 90 pounds. The 2-shelf IBR-2 is sized to fit under an OutBack Radian inverter/charger to reduce system component "clutter" and make the best use of installation space. Clear covers allow for visual inspection while providing additional protection for the batteries and electrical connections. The IBR-3-48-175 can accommodate up to twelve (12) EnergyCell batteries, while the IBR-2-48-175 can accomodate up to eight (8) EnergyCell batteries. Both models support 48 volt systems.
Product Highlights
Unlike typical steel racks, the OutBack design is crafted of powder coated aluminum, resulting in a rack that maintains a clean, durable appearance even in challenging environments while weighing less than 90 pounds. The 2-shelf IBR-2 is sized to fit under an OutBack Radian inverter/charger to reduce system component "clutter" and make the best use of installation space. Clear covers allow for visual inspection while providing additional protection for the batteries and electrical connections. The IBR-3-48-175 can accommodate up to twelve (12) EnergyCell batteries, while the IBR-2-48-175 can accomodate up to eight (8) EnergyCell batteries. Both models support 48 volt systems.
Product Highlights
- Comprehensive battery enclosure solution with cell interconnect
- String overcurrent protection and disconnects
- Crafted of powder coated aluminum
- Supports 48 volt systems
- Durable appearance even in challenging environments
- Integrated Battery Rack Spec Sheet | Download
- Energy Storage Solutions | Download
- Product Manual | Download
