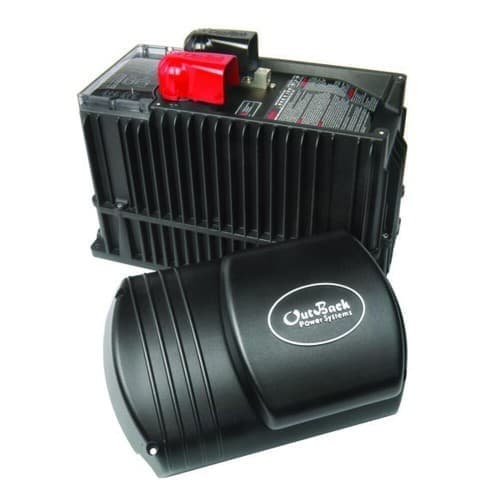

Outback Power, VFXR3024E, Grid-interactive FXR Renewable Series vented inverter/charger, 3.0 kW, 230 VAC 50/60 Hz, 24 VDC, 85 Amp charger, 30 Amp AC input
Manufacturer Info
The latest, most advanced features on the industry's most trusted andproven platform-that's the essence of OutBack'snew FXR Series ofGrid/Hybrid inverter/chargers. Capable ofoff-grid or grid-connectedoperation in a single model, theFXR Grid/Hybrid inverter/chargersprovide system designerswith unprecedented flexibility andcompatibility for nearly any power conversion scenario.
The new FXR features and technologies on the acclaimedFX platform include:
Both off-grid and grid-tied functionality in one unit
Available in sealed or vented units with NEMA type 1 die-castaluminumchassis designed to operate in the harshest environmentalconditionssuch as high temperatures, humidity or corrosive salt air,the FXR'scontinue in OutBack's tradition of absolute dependability inmission criticalinstallations no matter how harsh or challenging theconditions.
Product Highlights
The new FXR features and technologies on the acclaimedFX platform include:
Both off-grid and grid-tied functionality in one unit
- Seven programmable modes, including GridZero and Support Mode, and built-in networked communications
- Advanced Battery Charging (ABC) with expanded charging voltagesandtime parameters, enabling system designers to accommodate thespecificcharging profiles and algorithms of new and emerging energystoragetechnologies including Lithium Ion, Aqueous Ion and Flow Chemistrybatteries
- Easy system upgradability in the field
- Product Specifications | Download
- Product Manual | Download
Available in sealed or vented units with NEMA type 1 die-castaluminumchassis designed to operate in the harshest environmentalconditionssuch as high temperatures, humidity or corrosive salt air,the FXR'scontinue in OutBack's tradition of absolute dependability inmission criticalinstallations no matter how harsh or challenging theconditions.
Product Highlights
- Single-phase, 230V Sinewave Output in 12V, 24V, or 48V Versions
- 2000W and 2300W Sealed Models
- 2600W and 3000W Vented Models
- Programmable for Seven Different Modes with Generator Assist
- Modular, Stackable Design for up to Nine Inverters in Three-phase and 10 Inverters in Grid-tied
- Up to 93% Operating Efficiency
- Field Upgradable Software
- Standard 5-Year Warranty with Optional 10-Year
