Features

• Two or three stage charging profiles
• Adjustable float voltage
• One or two bank charging (three bank optional)
• Temperature compensation
• Low EMI
• Manual equalization mode
• Three year warranty (parts & labor)
• Product Datasheet | Download
• Product Manual | Download

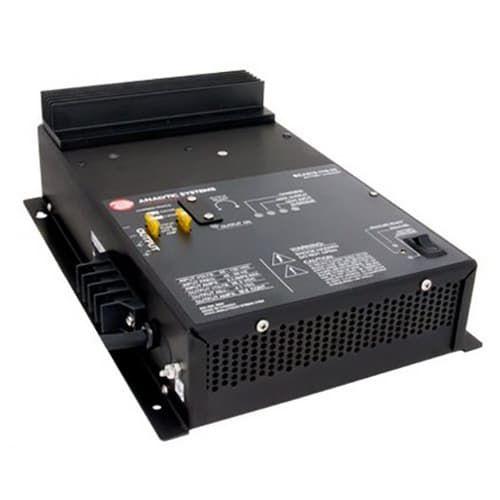

The traditional BCA610 series chargers feature 600 watts of precision charging power for 1 or 2 banks of batteries at 12, 24, 32, 36, 48 or 72(rail) volts DC. Models are available to operate from 110 or 220 volts AC at 50, 60 or 400 Hz.

All models feature user selectable 2-stage or 3-stage charging profiles, temperature compensation and user initiated equalization for optimum charging and maximum battery life.

Function	Battery Charger
Conversion	AC to DC
Power Level	600
Input Volts	110 VAC
Power Factor Corrected (PFC)	No
Output Volts	48 VDC
Output Amps Continuous	11
Input/Output Isolation	Yes
Technology	Analog
Charging Stages	3
Temperature Compensation	Yes
Equalize	Yes
Battery Banks	2
Product Series on website	BCA610
Option Codes	'Z' No Conformal Coating (Any Model), 'X' Ruggedized & Wide Temp, 'V' Digital Volt/Ammeter, 'U' Safety Special Inspection (CSA/UL), 'R' 19 Inch Rackmount, 'Q' 23 Inch Rackmount, 'O' Open Frame - No chassis, 'M' Military Rugged, 'J' MIL810 Tested Only, 'I' MIL461 Tested Only, 'G' GMDSS (DVAM & RCP1 Remote), 'E' European ROHS compliant, 'C' MIL461F & MIL810G Tested
