Analytic Systems, BCA610-110-32, 16.5A, 32V Out, 110VAC In, AC/DC Battery Charger, 2 Bank, CSA/UL

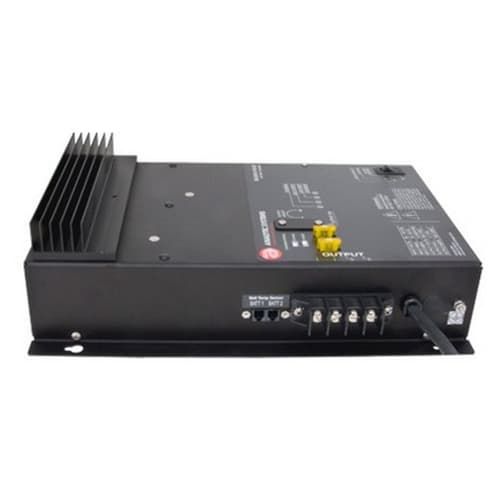

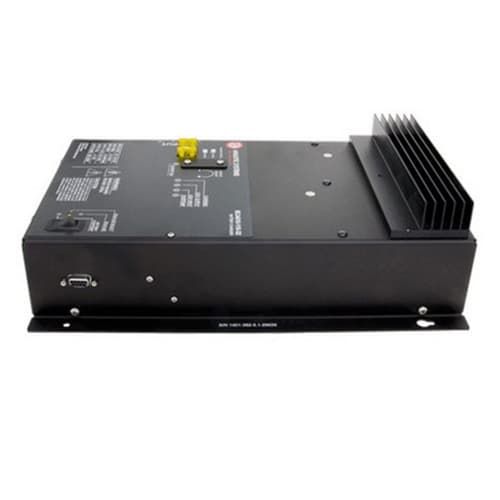

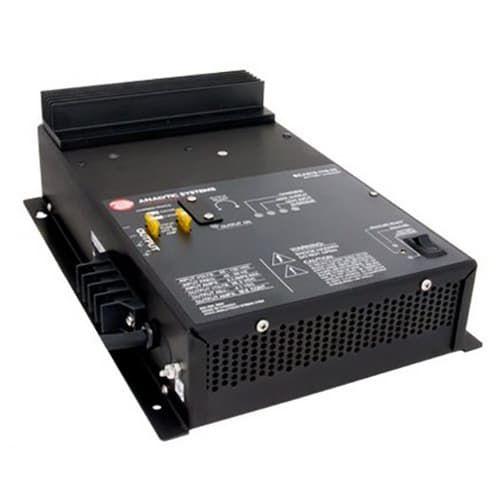

The images shown are for illustration purposes only and may not be an exact representation of the product

Analytic Systems, BCA610-110-32, 16.5A, 32V Out, 110VAC In, AC/DC Battery Charger, 2 Bank, CSA/UL

Model: BCA610-110-32
Manufactured by: Analytic Systems
Condition: New
Estimated Delivery: Apr 3rd - Apr 9th
Estimated Delivery: 2 to 3 Weeks
In Stock
Out of Stock
Built to Order - This Product Cannot Be Cancelled Once Order Is Placed

Price:

$1,812.04 $1,393.88

Manufacturer Info

Other products

Features

Two or three stage charging profiles
Adjustable float voltage
One or two bank charging (three bank optional)
Temperature compensation
Low EMI
Manual equalization mode
Three year warranty (parts & labor)
Product Datasheet | Download
Product Manual | Download

The traditional BCA610 series chargers feature 600 watts of precision charging power for 1 or 2 banks of batteries at 12, 24, 32, 36, 48 or 72(rail) volts DC. Models are available to operate from 110 or 220 volts AC at 50, 60 or 400 Hz.

All models feature user selectable 2-stage or 3-stage charging profiles, temperature compensation and user initiated equalization for optimum charging and maximum battery life.

Function	Battery Charger
Conversion	AC to DC
Power Level	600
Input Volts	110 VAC
Power Factor Corrected (PFC)	No
Output Volts	32 VDC
Output Amps Continuous	16.5
Input/Output Isolation	Yes
Technology	Analog
Charging Stages	3
Temperature Compensation	Yes
Equalize	Yes
Battery Banks	2
Product Series on website	BCA610
Option Codes	'Z' No Conformal Coating (Any Model), 'X' Ruggedized & Wide Temp, 'V' Digital Volt/Ammeter, 'U' Safety Special Inspection (CSA/UL), 'R' 19 Inch Rackmount, 'Q' 23 Inch Rackmount, 'O' Open Frame - No chassis, 'M' Military Rugged, 'J' MIL810 Tested Only, 'I' MIL461 Tested Only, 'G' GMDSS (DVAM & RCP1 Remote), 'E' European ROHS compliant, 'C' MIL461F & MIL810G Tested
