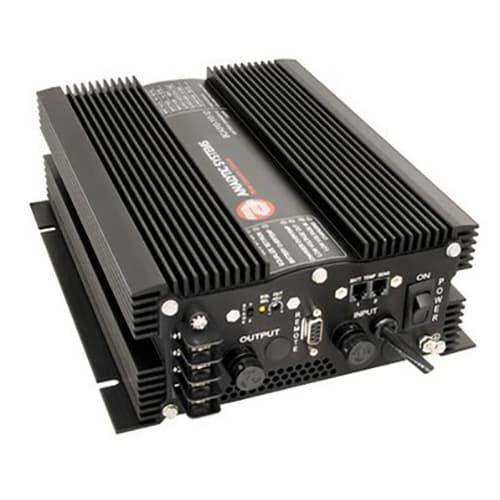

The images shown are for illustration purposes only and may not be an exact representation of the product

Analytic Systems, BCA310-110-48, 5.0A, 48V Out, 110VAC In, AC/DC Battery Charger, 3 Bank

Model: BCA310-110-48
Manufactured by: Analytic Systems
Condition: New
Estimated Delivery: Apr 3rd - Apr 9th
Estimated Delivery: 2 to 3 Weeks
In Stock
Out of Stock
Built to Order - This Product Cannot Be Cancelled Once Order Is Placed

Price:

$1,487.36 $1,144.13

Manufacturer Info

Other products

Features

300 watts of charging power
One, two or three bank charging
Temperature compensation
Manual equalization mode
Two or three stage charging profiles
Low EMI
110 and 220 VAC inputs
Adjustable float voltage
Three year parts and labour warranty

The traditional BCA310 series chargers feature 300 watts of precision charging power for 1, 2 or 3 banks of batteries at 12, 24, 32, 36, 48 or 72(rail) volts DC. Models are available to operate from 110 or 220 volts AC at 50, 60 or 400 Hz.

All models feature user selectable 2-stage or 3-stage charging profiles, temperature compensation and user initiated equalization for optimum charging and maximum battery life.

Function	Battery Charger
Conversion	AC to DC
Power Level	300
Input Volts	110 VAC
Power Factor Corrected (PFC)	No
Output Volts	48 VDC
Output Amps Continuous	5
Input/Output Isolation	Yes
Technology	Analog
Charging Stages	3
Temperature Compensation	Yes
Equalize	Yes
Battery Banks	3
Product Series on website	BCA310
Option Codes	'Z' No Conformal Coating (Any Model), 'Y' IP67 Certified, 'X' Ruggedized & Wide Temp, 'W' IP66 Water Resistant, 'V' Digital Volt/Ammeter, 'U' Safety Special Inspection (CSA/UL), 'P' Portable (Handle & Feet), 'O' Open Frame - No chassis, 'M' Military Rugged, 'J' MIL810 Tested Only, 'I' MIL461 Tested Only, 'G' GMDSS (DVAM & RCP1 Remote), 'E' European ROHS compliant, 'C' MIL461F & MIL810G Tested
