Mastervolt ensures you an electrical system with no weak links and a dependable and silent power supply. Whether for recreational or professional purposes with Mastervolt you always have power you can rely on... The power to be independent.

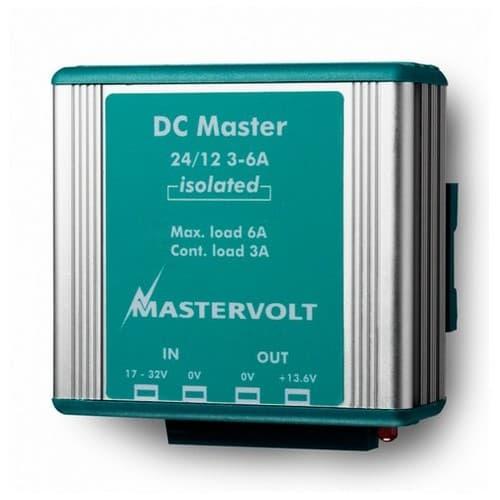

DC Master DC-DC converters
The required voltage for DC current can vary. Some equipment requires 24 V while onboard equipment usually requires 12 V. For custom DC current Mastervolt offers a series of compact and made to measure DC-DC converters for both 12 V and 24 V battery systems that offer stable power with the right current for any connected consumer. There is a wide range of DC Master converters available including insulated and non-insulated models.
- Recreational and semi-professional use.
- Easy to install using included mounting bracket screws and fasteners.
- Smart electronics mean no unnecessary heat generation.
- Continuous output.
- Insulated and non-insulated models available.
- Two minutes of extra power for short power boosts.
- Excellent price/performance ratio.
- Product Specifications | Download
Mastervolt ensures you an electrical system with no weak links and a dependable and silent power supply. Whether for recreational or professional purposes with Mastervolt you always have power you can rely on... The power to be independent.
DC Master DC-DC converters
The required voltage for DC current can vary. Some equipment requires 24 V while onboard equipment usually requires 12 V. For custom DC current Mastervolt offers a series of compact and made to measure DC-DC converters for both 12 V and 24 V battery systems that offer stable power with the right current for any connected consumer. There is a wide range of DC Master converters available including insulated and non-insulated models.
| General specifications | ||
| Nom. output voltage | 13.6 V | |
| Max. output power | 54 W | |
| Nom. output power | 41 W | |
| Max. output current (for 2 min. intervals) | 4 A | |
| Cont. output current | 3 A | |
| Nominal input voltage | 12 V | |
| Input voltage range | 10-15.5 V | |
| Galvanic isolation | yes | |
| Stabilised | yes | |
| Dimensions hxwxd | 89 x 87 x 50 mm 3.5 x 3.4 x 2.0 inch | |
| Weight | 0.290 kg 0.6 lb | |
| Approvals | CE E-mark | |
| Technical specifications | ||
| DC consumption | < 100 mA | |
| Connections | fast-on | |
| Temperature range (ambient temp.) | -25 C to 80 C derating > 30 C -13 to 176 F | |
| Cooling | natural cooling | |
| Sound level | < 30 dBA at 1 mtr | |
| Protection degree | IP53 | |
