Manufacturer Info
The MNE250SMA-OG/AC DM The Dual Master E-Panel works with 1 of the MNE250SMA-Slave E-Panels to create a 120/240 VAC AC coupled or Off Grid system. The MNE250SMA-OG/AC DM includes the 60amp, 120/240vac input/output bypass system. Terminals are provided for hookup to leg 2 from the Slave E-Panel. Comes with 250amp battery disconnect breaker and inverter cables. Pre-wired with AC input and output wiring for leg 1 (master) inverter. (One slave E-Panel is required for 120/240.)
Master E-Panel in a 9-12KW dual Sunny Island inverter system. The dual system can be off-grid, AC coupled, battery backup grid tie or battery backup.
NOTE: One Slave E-Panel and additional Sunny Island required.

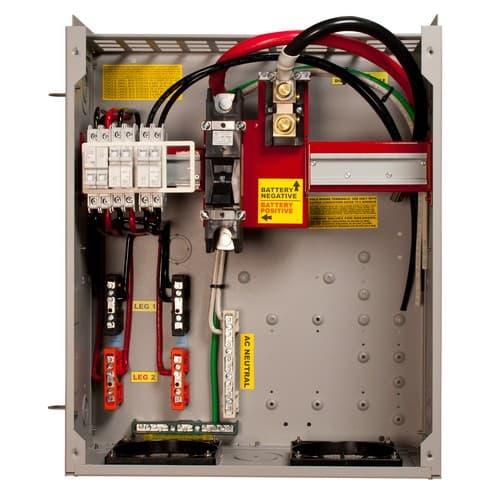

This Master E-Panel in a dual Sunny Island inverter system includes:
Master E-Panel in a 9-12KW dual Sunny Island inverter system. The dual system can be off-grid, AC coupled, battery backup grid tie or battery backup.
NOTE: One Slave E-Panel and additional Sunny Island required.
This Master E-Panel in a dual Sunny Island inverter system includes:
- Environmental Rating - Type 1 (Indoor)
- 60amp, 120/240vac Output/Bypass system
- Separate 60amp, 120/240vac AC input and output breakers for the master inverter
- 2 Extra spaces on the face to the Left of the main battery breaker for the white bodied (MNEACQZD) CBI Din Rail breakers
- 8 Extra spaces on the face to the Right of the main battery breaker for the black bodied (MNEAC or MNEPV) CBI Din Rail breakers
- 4 Spaces on the left side and 6 spaces on the right side of the chassis for the Panel mount 3/4 inch breakers (MNEDC)
- 250amp battery breaker with inverter cables
- 500amp/50mV shunt (MNSHUNT)
- Battery negative busbar
- AC input and output busbars
- Neutral and ground busbars
- AC input and output wiring
- All breakers are hydraulic-magnetic and rated for continuous duty
- Space provided for 6 additional 1/2" wide din rail mount AC or DC breakers and up to 12 3/4" wide panel mount breakers
- Knockouts located for battery cables
- AC conduit connections
- Warranty - 5 yrs.
- Listed by ETL for US & Canada
- Made in the USA
- SMA E-Panel Dim Drawing | Download
- SMA-E-Panel-Manual | Download
- Classic Simple Flow Diagram | Download
