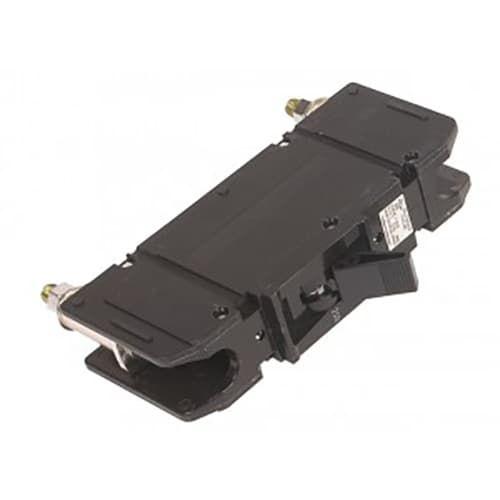

Outback Power, PNL-60-300VDC, 60 Amp, 300 VDC, 1/4" stud terminals

Model: PNL-60-300VDC
Manufactured by: Outback Power
Condition: New
Estimated Delivery: Nov 23rd - Nov 29th
In Stock
Out of Stock

Price:

$73.01 $56.16

Manufacturer Info

Other products

Product Highlights

Panel mounted hydraulic-magnetic type breakers
Rated for 100% continuous duty cycle
Not affected by high ambient temperatures
Non-polarized for use in any wiring orientation
Can be used for input, output or load circuits
Contact OutBack for additional information

Front panel, single pole mount with stud terminals on the back. Ring terminals required.

PNL-1-AC/DC	1 Amp, 150Vdc and 120Vac, 1/4” stud terminals
PNL-5-AC/DC	5 Amp, 150Vdc and 120Vac, 1/4” stud terminals
PNL-10-AC/DC	10 Amp, 150Vdc and 120Vac, 1/4” stud terminals
PNL-15-AC/DC	15 Amp, 150Vdc and 120Vac, 1/4” stud terminals
PNL-20-AC/DC	20 Amp, 150Vdc and 120Vac, 1/4” stud terminals
PNL-30-AC/DC	30 Amp, 150Vdc and 120Vac, 1/4” stud terminals
PNL-30-AC	30 Amp, 250Vac, 1/4” stud terminals
PNL-40-AC/DC	40 Amp, 150Vdc and 120Vac, 1/4” stud terminals
PNL-50-AC/DC	50 Amp, 150Vdc and 120Vac, 1/4” stud terminals
PNL-60-AC/DC	60 Amp, 150Vdc and 120Vac, 1/4” stud terminals
PNL-80-DC	80 Amp, 150Vdc, 1/4” stud terminals
PNL-100-DC	100 Amp, 125Vdc, 5/16” stud terminals
PNL-125-DC	125 Amp, 125Vdc, 5/16” stud terminals
PNL-175-DC	175 Amp, 125Vdc, 3/8” stud terminals
PNL-250-DC	250 Amp, 125Vdc, 3/8” stud terminals
