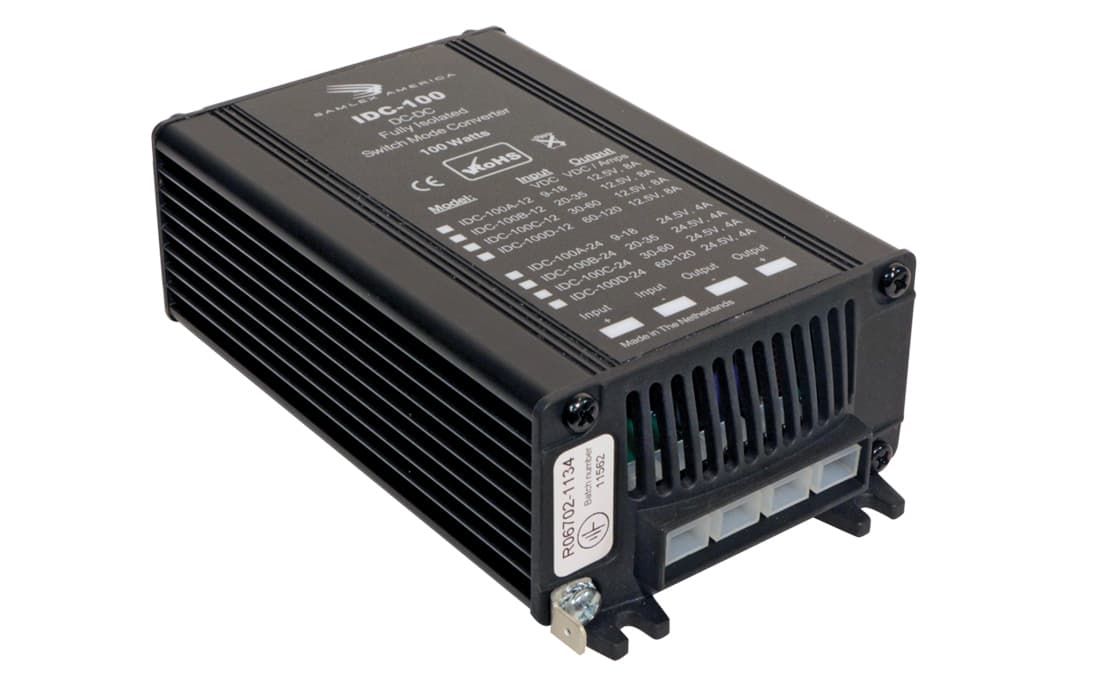

Samlex America, IDC-100D-12, Fully Isolated Converter

Model: IDC-100D-12
Manufactured by: Samlex America
Condition: New
Estimated Delivery: Nov 22nd - Nov 28th
In Stock
Out of Stock

Price:

$212.68 $163.60

Manufacturer Info

Other products

IDC-100 series is a complete line of high efficiency 100 Watt isolated DC-DC converters suitable for applications requiring galvanic isolation between the input and the output. IDC-100D-12 isolated DC-DC converter provides a highly regulated output DC voltage of 12.5 Volts for an input DC voltage range of 60-120 Volts and rated output current of 8 Amps (at 120 Volts input). Features of this isolated DC-DC converter include compact housing, fold-back current limiting and protection against short circuit, overheating, overvoltage and reverse polarity connection. The unit comes with 1/4" push-on flat blade "quick disconnect" connectors.

Features

Fully Isolated
Short Circuit Protected
Current Limited
Product Manual | Download
Samlex Specifications (EN) | Download

Application

Earth moving equipment
Heavy trucks
Buses
Marine vehicles
CB radios
24 Volt lighting systems
AM/FM sound systems

Input	60-120 VDC
Output	12.5 VDC
Amps	8 Amps
Weight	1.2 (lbs)
Weight	0.54 (kg)
Dimensions	6 x 3.5 x 1.9 (in)
Dimensions	15.2 x 8.9 x 4.8 (cm)
Warranty	2 Year Limited
