Manufacturer Info
General use powder coated aluminum enclosure - holds up to 4 13mm wide din rail breakers from 1-63 amps.

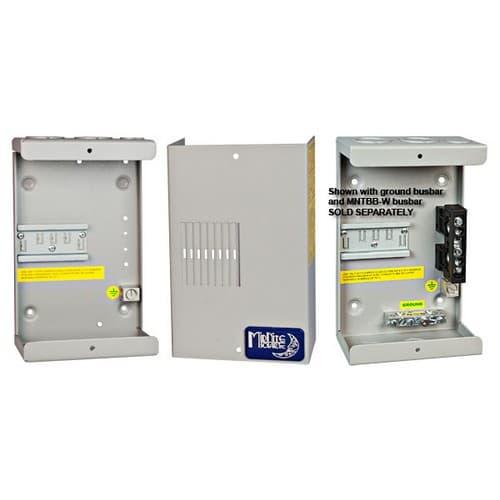

The original Baby box has been a huge success in filling an industry need. We have created an enclosure called the Big Baby to over come the Baby Box smallness allowing for a ETL listed 4 position din rail box. This box is about twice as wide as the baby box giving you more wiring room. It also includes a ground box lug and mounting provisions for our short insulated bus bar as well as a ground bus bar. A dimensioned drawing is under documents on our website.
Features
The original Baby box has been a huge success in filling an industry need. We have created an enclosure called the Big Baby to over come the Baby Box smallness allowing for a ETL listed 4 position din rail box. This box is about twice as wide as the baby box giving you more wiring room. It also includes a ground box lug and mounting provisions for our short insulated bus bar as well as a ground bus bar. A dimensioned drawing is under documents on our website.
Features
- Environmental Rating - Type 1 (Indoor)
- Big Baby's DIN rail accepts up to 4 breakers (not included)
- Quad accepts up to 4 panel mount breakers (not included)
- Breakers: 1-63A
- Max. Wire - breakers 6 AWG
- Max. AC Voltage - 277VAC
- Max. DC Voltage - 300VDC
- Warranty - 5 yrs.
- Listed by ETL for US & Canada
- Made in the USA
- Small Enclosure Brochure | Download
- Small Enclosure Brochure/Spec Sheet - Spanish | Download
- ATM Big Baby-Quad | Download

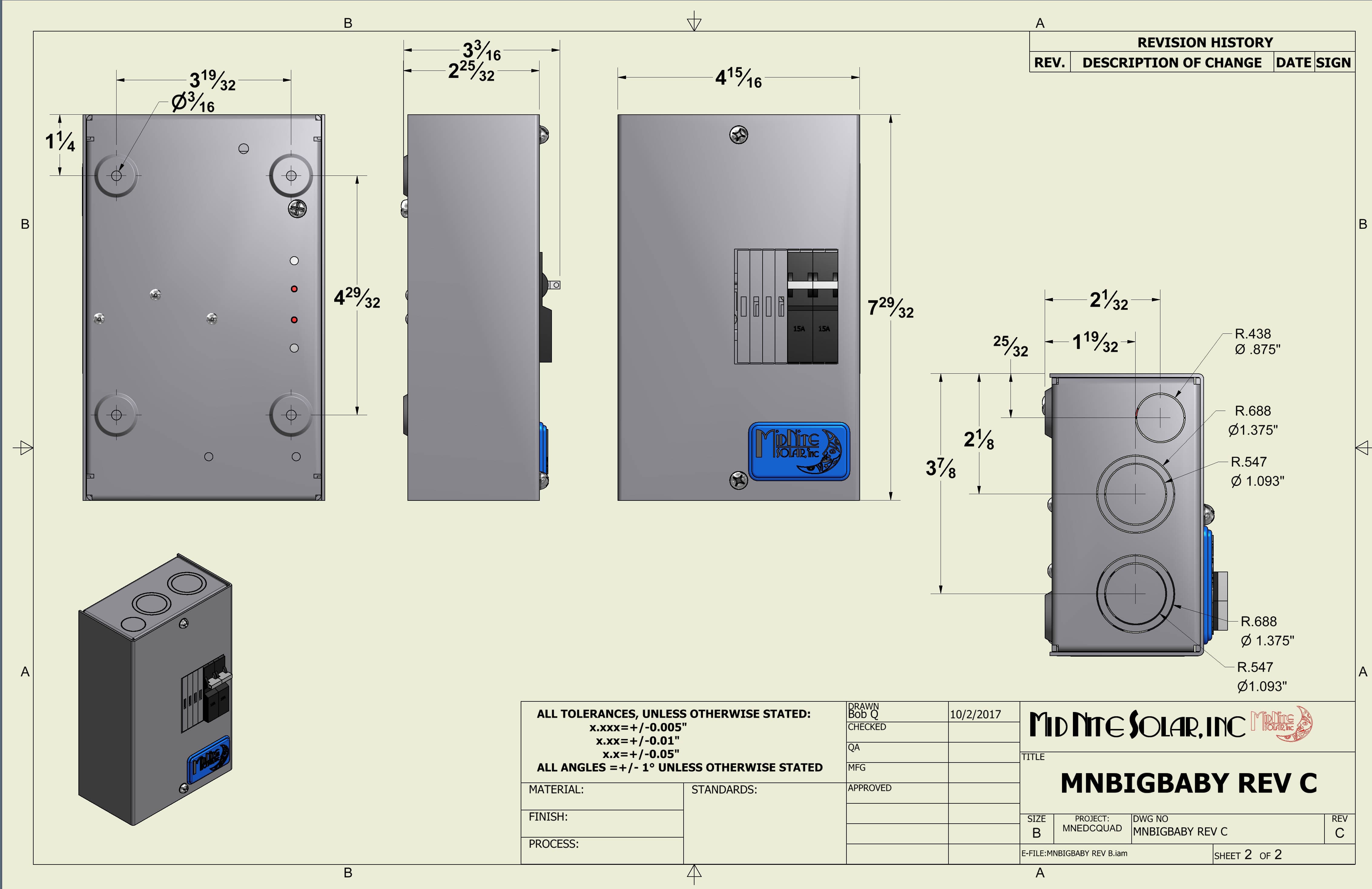

- Big Baby Dimensional Drawing | Download
- BIG BABY | Download
- MNBIGBABY and MNEDCQUAD Manual | Download
