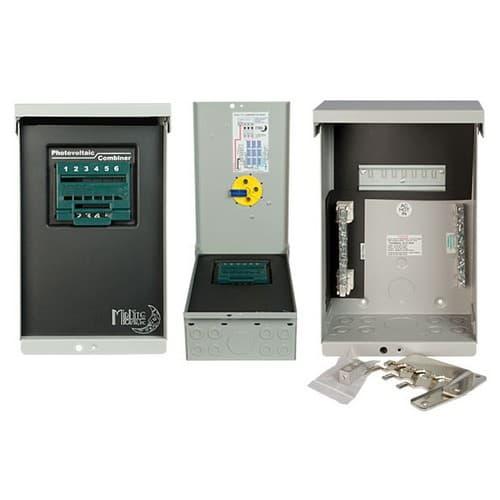

Midnite Solar, MNPV6-DISCO AC MICRO, String Combiner W/ Disconnect for AC Microinverters, 3 Circuit, 240VAC, Nema3R, Not Birdhouse Compatible
Manufacturer Info
Enclosure only - NOT COMPATIBLE WITH THE BIRDHOUSE.
This 3R enclosure includes 2 busbars. Can use up to 3 of our 240 VAC breakers to combine up to 3 strings of 240 volt micro inverters.
The MNPV6-DISCO AC MICRO's red handled is LOCKABLE IN THE OFF POSITION!
This 3R enclosure includes 2 busbars. Can use up to 3 of our 240 VAC breakers to combine up to 3 strings of 240 volt micro inverters. Can be used up to 150 amps and 1/0 wire. Load break rated. Lockable in the off position. Included is the deadfront (MNPV6DF) and the MNPV6-DISCO-SLIDER
Depending upon the model number, you can use
This 3R enclosure includes 2 busbars. Can use up to 3 of our 240 VAC breakers to combine up to 3 strings of 240 volt micro inverters.
The MNPV6-DISCO AC MICRO's red handled is LOCKABLE IN THE OFF POSITION!
This 3R enclosure includes 2 busbars. Can use up to 3 of our 240 VAC breakers to combine up to 3 strings of 240 volt micro inverters. Can be used up to 150 amps and 1/0 wire. Load break rated. Lockable in the off position. Included is the deadfront (MNPV6DF) and the MNPV6-DISCO-SLIDER
Depending upon the model number, you can use
- Type 3R environmental rating
- DC 600V (1 circuit Pos or Pos and Neg switched) Part no. MNPV6
- DC 300V (3 circuits) Part #MNPV6-250
- DC 150V (6 circuits) Part #MNPV6
- AC 120v 20 amps (6 circuits) Part #MNPV6
- AC 240v 40 amps (3 circuits) Part #MNPV6-AC Micro
- AC and DC can be installed in the same box! Example: 600Vdc 20 amp PV in and 40 amp 240Vac Inverter output
- Lockable Disconnect
- >Warranty - 5 yrs.
- Listed by ETL for US & Canada
- Made in the USA
- ATM - Enphase | Download
- 3R Combiner Roof Pitch | Download
- MNPV6 Disco Manual | Download
