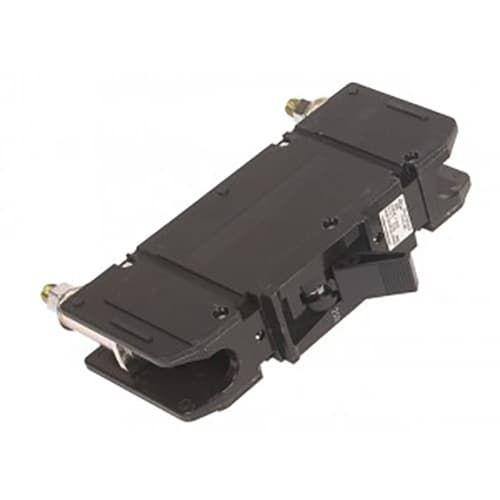

Outback Power, PNL-125-DC, 125 Amp, 125 VDC, 5/16" stud terminals

Model: PNL-125-DC
Manufactured by: Outback Power
Condition: New
Estimated Delivery: Nov 23rd - Nov 29th
In Stock
Out of Stock

Price:

$77.06 $59.28

Manufacturer Info

Other products

Front panel, single pole mount with stud terminals on the back. Ring terminals required.

Product Highlights

Panel mounted hydraulic-magnetic type breakers
Rated for 100% continuous duty cycle
Not affected by high ambient temperatures
Non-polarized for use in any wiring orientation
Can be used for input, output or load circuits
Contact OutBack for additional information

PNL-1-AC/DC	1 Amp, 150Vdc and 120Vac, 1/4" stud terminals
PNL-5-AC/DC	5 Amp, 150Vdc and 120Vac, 1/4" stud terminals
PNL-10-AC/DC	10 Amp, 150Vdc and 120Vac, 1/4" stud terminals
PNL-15-AC/DC	15 Amp, 150Vdc and 120Vac, 1/4" stud terminals
PNL-20-AC/DC	20 Amp, 150Vdc and 120Vac, 1/4" stud terminals
PNL-30-AC/DC	30 Amp, 150Vdc and 120Vac, 1/4" stud terminals
PNL-30-AC	30 Amp, 250Vac, 1/4" stud terminals
PNL-40-AC/DC	40 Amp, 150Vdc and 120Vac, 1/4" stud terminals
PNL-50-AC/DC	50 Amp, 150Vdc and 120Vac, 1/4" stud terminals
PNL-60-AC/DC	60 Amp, 150Vdc and 120Vac, 1/4" stud terminals
PNL-80-DC	80 Amp, 150Vdc, 1/4" stud terminals
PNL-100-DC	100 Amp, 125Vdc, 5/16" stud terminals
PNL-125-DC	125 Amp, 125Vdc, 5/16" stud terminals
PNL-175-DC	175 Amp, 125Vdc, 3/8" stud terminals
PNL-250-DC	250 Amp, 125Vdc, 3/8" stud terminals
