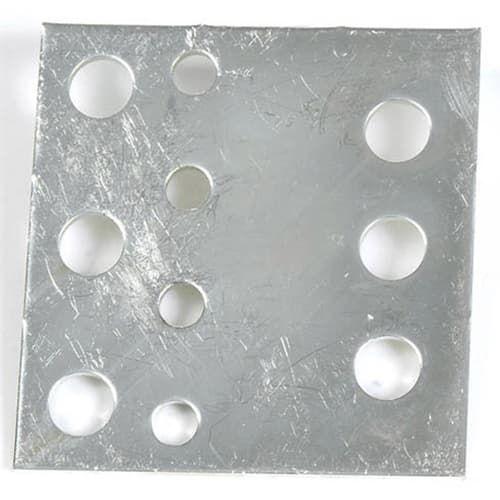

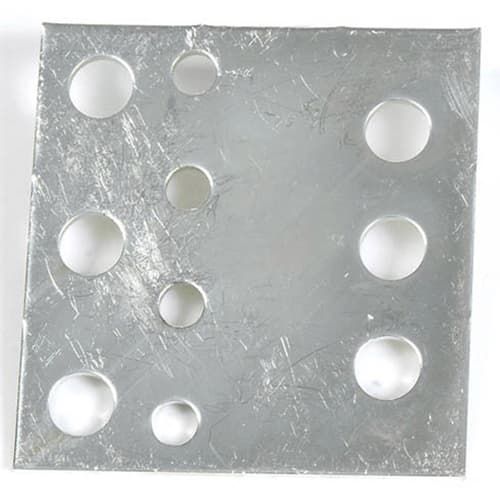

Outback Power, FW-BBUS, Breaker Bus allows connection of two 175-250 Amp, three 100-125 Amp, four 1-80 Amp DC breakers or three 500 Amp DC current shunts. Plated copper rated for 500 Amps.
Manufacturer Info
FW-BBUS
Breaker Bus allows connection of two 175-250A, three 100-125A, four 1-80A DC breakers or three 500 Amp DC current shunts - plated copper rated for 500 Amp.
FW-CBUS
Combiner Bus connects up to eight DIN mounted breakers or four DIN mounted fuse holders - includes one 1/0 set screw lug - plated copper rated for 200 Amps.
FW-SBUS
Shunt Bus allows up to four high current cable connections on same side of DC shunt - includes two 3/8 inch bolts and mounting screws - solid brass rated for 1000 Amps.
Product Highlights
Breaker Bus allows connection of two 175-250A, three 100-125A, four 1-80A DC breakers or three 500 Amp DC current shunts - plated copper rated for 500 Amp.
FW-CBUS
Combiner Bus connects up to eight DIN mounted breakers or four DIN mounted fuse holders - includes one 1/0 set screw lug - plated copper rated for 200 Amps.
FW-SBUS
Shunt Bus allows up to four high current cable connections on same side of DC shunt - includes two 3/8 inch bolts and mounting screws - solid brass rated for 1000 Amps.
Product Highlights
- DC bus bars
- Designed to enable the most complex of code compliant DC cable connections
- Contact OutBack for Product Highlights
