Manufacturer Info

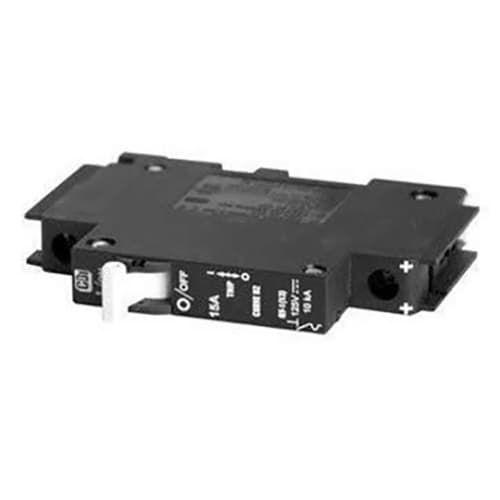

DIN rail mount with set-screw compression terminals, #14 to 2 AWG (1.62 mm to 6.54 mm
Product Highlights
Product Highlights
- DIN rail mountable
- Can be used for DC sources, inverters or load circuits
- Contact OutBack for additional information
DIN-15-AC | 15 Amp 120Vac 50/60Hz single pole 0.50 (13 mm) wide. Branch Circuit Rated 10k AIC |
DIN-15D-AC | 15 Amp 120/240Vac 50/60Hz dual pole 1.0 (26 mm) wide. Branch Circuit Rated 10k AIC |
DIN-20-AC | 20 Amp 120Vac 50/60Hz single pole 0.50 (13 mm) wide. Branch Circuit Rated 10k AIC |
DIN-20D-AC | 20 Amp 120/240Vac 50/60Hz dual pole 1.0 (26 mm) wide. Branch Circuit Rated 10k AIC |
DIN-25D-AC | 25 Amp 120/240Vac 50/60Hz dual pole 1.0 (26 mm) wide. Branch Circuit Rated 10k AIC |
DIN-10-AC-277 | 10 Amp 277Vac 50/60Hz single pole 0.5 (13 mm) wide |
DIN-15-AC-277 | 15 Amp 277Vac 50/60HZ Single Pole 0.5 (13 mm) wide |
DIN-30-AC-277 | 30 Amp 277Vac 50/60Hz Single Pole 0.5 (13 mm) wide |
DIN-30D-AC-480 | 30 Amp 277/480Vac 50/60Hz Dual Pole 1.0 (26 mm) wide |
DIN-30T-AC-480 | 30 Amp 277/480Vac 50/60Hz Three Pole 1.5 (39 mm) wide |
DIN-50-AC-277 | 50 Amp 277Vac 50/60Hz Single Pole 0.5 (13 mm) wide |
DIN-50D-AC-480 | 50 Amp 277/480Vac 50/60Hz Dual Pole 1.0 (26 mm) wide |
DIN-50T-AC-480 | 50 Amp 277/480Vac 50/60Hz Three Pole 1.5 (39 mm) wide |
DIN-60-AC-277 | 60 Amp 277Vac 50/60Hz Single Pole 0.5 (13mm) wide |
DIN-60D-AC-480 | 60 Amp 277/480Vac 50/60Hz Dual Pole 1.0 (26mm) wide |
