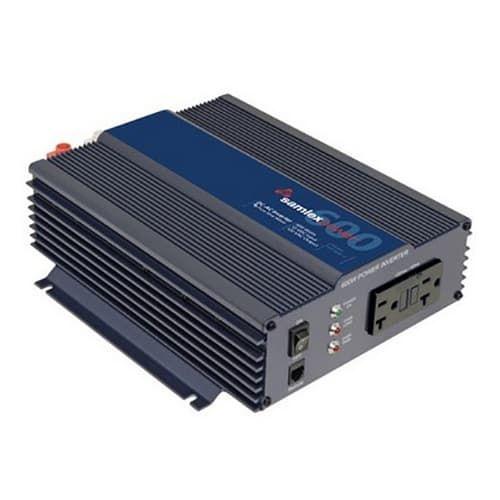

This high efficiency DC-AC inverter converts 12 Volts DC to 600 Watts of pure sine-wave AC power at 120 Volts 60 Hz. The unit comes with pin-type battery cable lugs. Features include built-in electronic GFCI overload protection low battery alarm / shut down low idle power draw of less than 0.5 Amps. AC power is available from a NEMA-20R GFCI duplex outlet on the front panel. Safety certified to UL standards.

Design Features

• High efficiency
• Temperature controlled cooling fan-reduces energy consumption
• Low interference Wide operating DC input range: 10.7 - 16.5 VDC
• Commercial grade design suitable for heavy duty loads, long periods of continuous operation & for emergency back up
• UPC-Universal Protection Circuit: low voltage, over voltage, over temperature, over load and short circuit
• Low idle power draw
• Dual GFCI protected AC outlets
• Optional remote control (sold separately): Model RC-15A

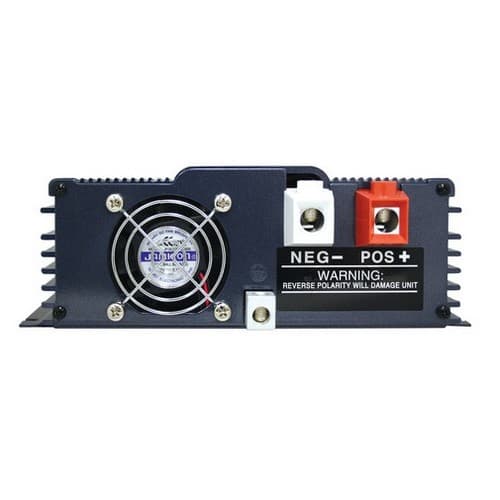

• Comes with pin-type battery cable lugs
• Safety certified to UL standards, FCC compliant
• Product Specifications | Download
• Product Manual | Download
• Product Manual - ES | Download

Applications

• High efficiency
• Temperature controlled cooling fan-reduces energy consumption
• Low interference Wide operating DC input range: 10.7 - 16.5 VDC
• Commercial grade design suitable for heavy duty loads, long periods of continuous operation & for emergency back up
• UPC-Universal Protection Circuit: low voltage, over voltage, over temperature, over load and short circuit
• Low idle power draw
• Dual GFCI protected AC outlets
• Optional remote control (sold separately): Model RC-15A
• Comes with pin-type battery cable lugs
• Safety certified to UL standards, FCC compliant

Input	12 VDC
Output	120 VAC
Watts	600
Surge	1000 Watts
Remote Control	RC-15A sold separately
Weight	5.9 (lbs)
Weight	2.7 (kg)
Dimensions	10.87 x 9.47 x 3.23 (in)
Dimensions	276.2 x 240.6 x 82 (mm)
Safety	ETL to UL Standard
Warranty	2 Years (Canada/US)
