Features

• 'Output ON' and "Charging" LED indicators
• Up to 80V input
• Compact size and easy mounting
• Simple plug in wiring
• Heavy duty ruggedization with wide temperature range
• Custom output voltages available
• Three year parts and labour warranty
• Product Datasheet | Download
• Product Manual | Download

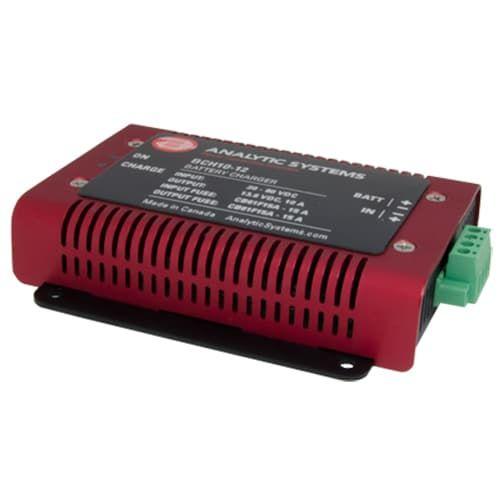

The BCH10 Step Down series of Battery Chargers supply up to 10 amps of charging current at 12, 24, 36 or 48 volts from any higher voltage between 20 and 80 volts DC for use in automotive, heavy equipment, marine, industrial, rail or alternative energy environments. The output voltage is configured to allow permanent connection to the battery.

All surface mount high frequency design offers higher reliability, higher efficiency (more than 91%), more power (up to 544 watts at 48 VDC Out) and minimum size.

The unit has reverse input protection, reverse battery connection protection, and output over-voltage protection and features spark free connection to the battery. Smart Ideal Diode output circuitry prevents any reverse current flowing from the battery back into the converter.

Function	Battery Charger
Conversion	DC to DC
Power Level	360
Input Volts	45 - 80 VDC
Output Volts	36 VDC
Output Amps Continuous	10
Input/Output Isolation	No
Technology	Analog
Charging Stages	2
Temperature Compensation	No
Equalize	No
Battery Banks	1
Product Series on website	BCH10
Option Codes	'Z' No Conformal Coating (Any Model), 'Y' IP67 Certified, 'X' Ruggedized & Wide Temp, 'W' IP66 Water Resistant, 'O' Open Frame - No chassis, 'M' Military Rugged, 'J' MIL810 Tested Only, 'I' MIL461 Tested Only, 'F' Electric Fork Lift, 'E' European ROHS compliant, 'C' MIL461F & MIL810G Tested
