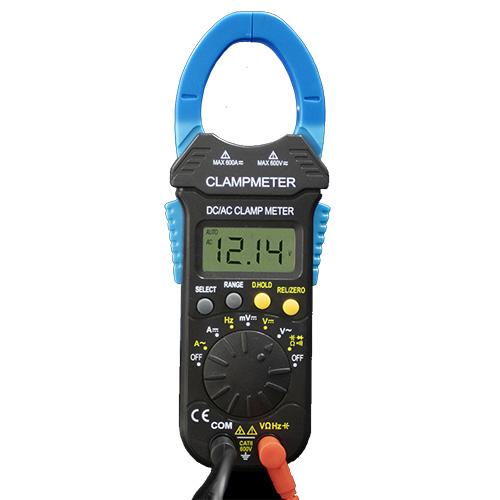

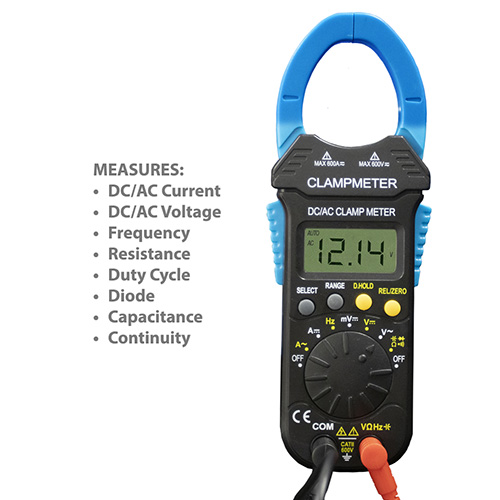

The AIMS Power clamp meter precisely and safely measures your wires, cables or any conductor within an electrical application. It is easily used and operated to measure live conductors without causing damage or loss of power. The digital clamp meter measures DC/AC Current, DC/AC Voltage, Frequency, Resistance, Duty Cycle, Diode, Capacitance and Continuity.
Easy to read display, audible warnings and the LCD is backlit with built-in auto power off to save battery life.

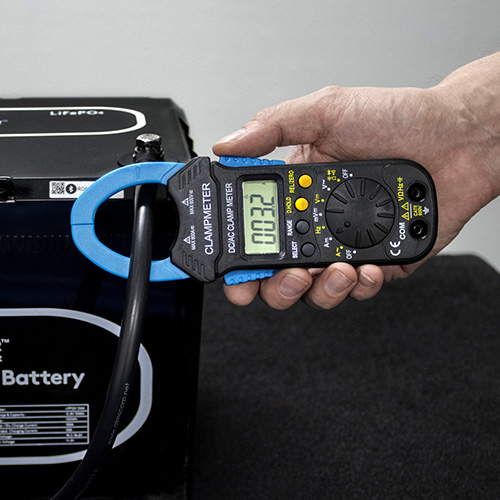

Spacious jaw opening, allowing touchless measuring of current without interrupting power.
Easy to read display, audible warnings and the LCD is backlit with built-in auto power off to save battery life.
Spacious jaw opening, allowing touchless measuring of current without interrupting power.
- Polarity
- Over-range indication
- Low battery
- True RMS
- Celsius/Fahrenheit
- Data hold for convenience
- CAT II 600V and Pollution Degree 2
- Auto range: 0-600A & 600V
- Resistance open voltage @0.55V
- Overload protection: 250V DC/AC RMS
- Uses Qty 2 AAA batteries (included)

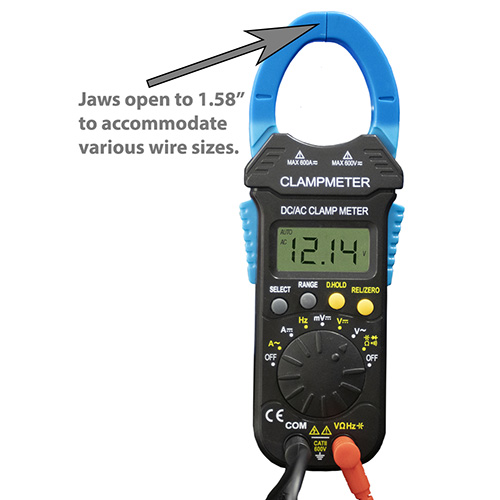

- Clamp open jaw dimension: 1.58? max
- Case, leads and batteries included
- Manual | Download
