String Level SunSpec Rapid Shutdown Receiver

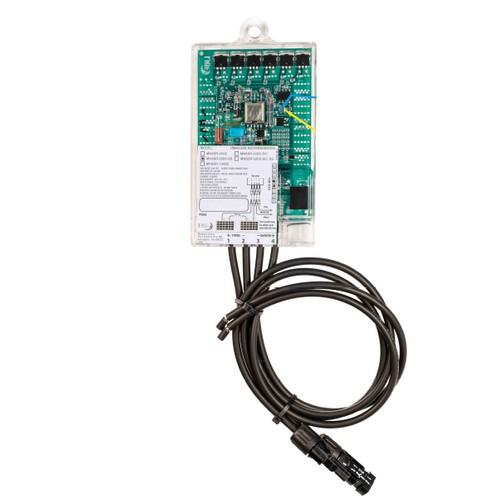

Sold in a case of 12 units. The MNSSR-600S-SS is a String Level SunSpec Rapid Shutdown Receiver from MidNite Solar. Meets rapid shutdown safety requirements without wires for communications or grounding.

Note, not to be used as mid circuit interrupter
The MNSSR-600S-SS receiver works with all SunSpec certified transmitters, built into the inverter or as a standalone. MidNite provides the following SunSpec transmitters

• MNSST-SINGLE, with single-core signal coupling toroid - good for 6 strings.
• MNSST-DUAL, with dual-core signal coupling toroid - good for 12 strings.
• MNSST-NAKED, optional PCB for Hawke's Bay and Barcelona charge controllers from MidNite.

Features

• UL3741 with iron Ridge racking and several inverters (See letter of conformity)
• Operating Voltage 50-600VDC
• Maximum Input 600VDC
• Maximum MPPT Input 550VDC
• Continuous Operating Current 12A
• Operating Temperature -40C to 85C
• Type 4X enclosure
• Staubli MC4 connectors
• Listed to UL1741
• Stainless Clips for mounting to module frame or hole for bolting to rail
• MNSSR-600S-SS Spec Sheet | Download
• Iron Ridge UL3741 Manual | Download
• MNSSR-600S-SS Compliance | Download
• MNSSR-600S-SS Manual | Download
