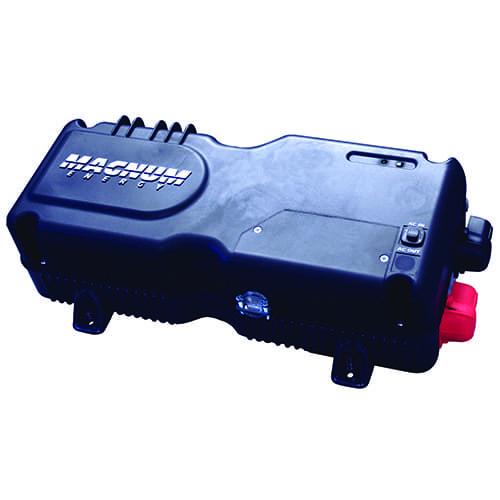

Magnum Energy, MM612-U, 600 Watt, 12V Inverter only with transfer switch

Model: MM612-U
Manufactured by: Magnum Energy
Condition: New
Estimated Delivery: Nov 23rd - Nov 29th
In Stock
Out of Stock

Price:

$463.11 $356.24

Would you like to add these items to your order?

	Magnum Energy, ME-BMK-R-L, Battery Monitoring Kit - Battery State of Charge Meter (Includes 500A/50mV DC Shunt) $226.97 $174.59	Add Magnum Energy, ME-BMK-R-L, Battery Monitoring Kit - Battery State of Charge Meter (Includes 500A/50mV DC Shunt) to cart
	Magnum Energy, ME-ARC50-L, Advanced Remote Digital LCD Display Remote Panel with 50' Cable $420.73 $323.64	Add Magnum Energy, ME-ARC50-L, Advanced Remote Digital LCD Display Remote Panel with 50' Cable to cart
	Magnum Energy, ME-AGS-N, Automatic Generator Start Module 3-relay with Voltage and Temp Start/Network Version $323.52 $248.86	Add Magnum Energy, ME-AGS-N, Automatic Generator Start Module 3-relay with Voltage and Temp Start/Network Version to cart

Manufacturer Info

Other products

The MM Series Inverter / Charger is a modified sine wave inverter providing a cost effective solution for those with smaller power needs in mobile applications. Versatile, easy-to-use, and lightweight, the MM Series provides a reliable base for your energy system.

Safe and reliable: The MM Series is ETL Listed to the stringent requirements of UL/cUL 458 and CSA C22.2 #107.1-01 for mobile use.

Attractive styling: The modern, hourglass case, paired with the die cast aluminum base combines form with function, creating an attractive unit that uses its base as a heat sink for superior high temperature operation.

Features

Standard transfer relay
Versatile mounting
Fan cooled
High / low battery protection
Current overload protection
Convenient switches
Circuit breaker protection
Battery temperature sensor
Backed by a two-year(24-month) limited warranty
Product Manual | Download
Product Specifications | Download

Available For

Marine Systems
RV Systems

Output Power	600W
Peak Watts	1,100W
Warranty	2 Years
Output Voltage	120 VAC
Output Peak	9amps
Output Current	5amps
Output Waveform	Quasi Sine
Output Frequency	60 Hz
Motor Starting Capacity	NA
Input Voltage	12
Continuous Output Amps	5amps
Operating Temp	-20 C to +60 C (-4 F to 140 F)
Efficiency	95%
Weight	14 lb (6.4 kg)
Dimensions	16.6" x 8.4" x 4.7" (42 cm x 21 cm x 12 cm)
UL Certified	Yes
Phase	Single
Topology	Low Frequency
Input Voltage Range	9-15.5
