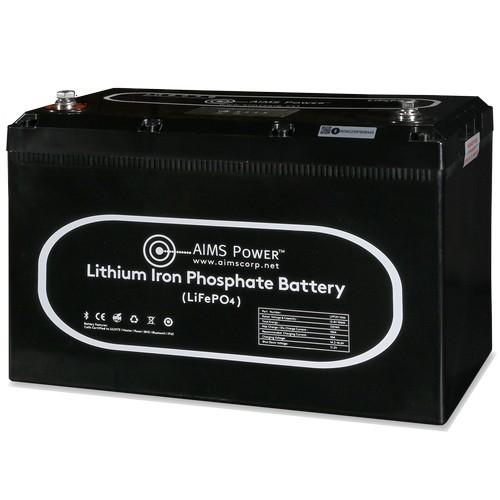

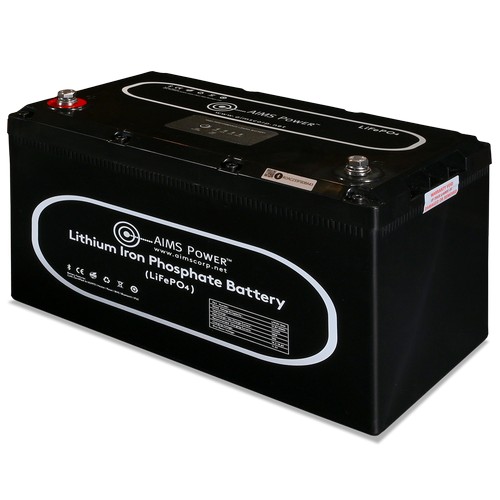

AIMS Power introduces its new and improved 104 amp 12V lithium iron phosphate (LiFePO4) battery. The LiFePO4 battery maintains constant output voltage, providing more efficient power. This allows the cell to deliver virtually full power until it is fully discharged without harming the battery, and it can greatly simplify or even eliminate the need for voltage regulation circuitry. The battery has a much longer cycle life capacity, and is easier to maintain compared to other battery technologies. The LiFePO4 technology has better thermal and chemical stability, which improves battery safety and packed with power in a small and lightweight footprint. The internal heater helps keep the temperature elevated, so charging is more efficient in colder climates. The AIMS Power 104A lithium battery offers a unique WAKE-UP feature. This feature allows you to spark the battery enough to allow a charge even if the battery has previously been over discharged.

Easily uses the same space as your existing 12V battery and replaces lead acid, AGM or Gel battery applications in RVs, golf carts, boats, commercial vehicles, off grid back up power and much more. Not intended to replace starting batteries. Backed by a 10 year pro-rated warranty and battery cell IEC rating that specifies requirements and tests for the safe operation of secondary lithium cells and batteries used in industrial applications including stationary applications.

** Google and Apple app is AIMSBATC

Features

• Automatic wake-up button in case battery is over discharged and/or has low voltage (no need to parallel another battery or have special charger to wake)
• Automatic heater for charging in colder environments (no external wiring needed)

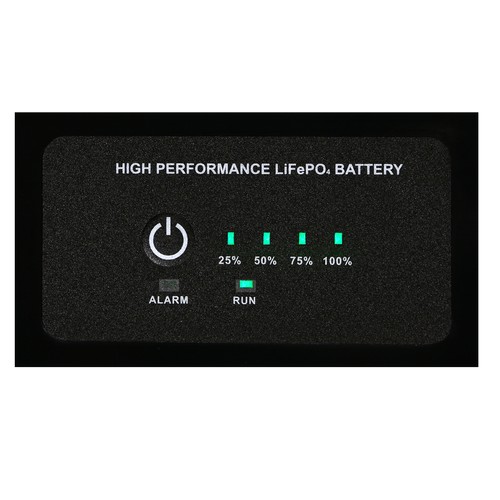

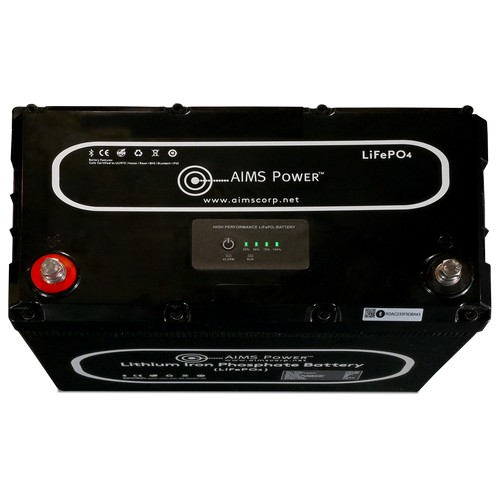

• Display
• Extremely high number of charge/discharge cycles
• > 10 Year lifespan with proper maintenance

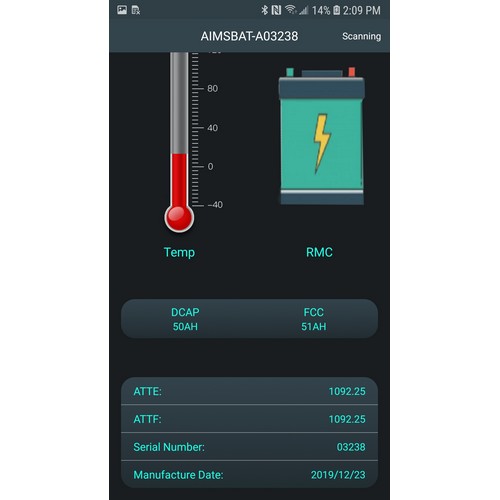

• Bluetooth monitoring
• 10 year warranty
• Wide operating temperature range
• Unsurpassed high temperature performance
• Green energy without metal contaminant
• Low maintenance
• High amp capacity
• Stable output voltage
• Little self-discharge
• BMS safety protection. Each cell is fused and if for some unlikely situation a cell fails, this design will isolate the cell stopping any other damage and allows the battery to function safely
• Convenient removable carry handle
• Lightweight
• Short circuit protected
• Physical damage to battery case will not cause fire
• Excessive thermal exposure will not cause a fire
• Able to withstand over-charge/over-discharge without damage to the battery
• Sophisticated Battery Management System (BMS)
• IP65 rated

Electrical Specifications	LFP12V104B
Nominal Voltage	12.8V
Nominal Capacity (at .5C, 77°F)	104Ah
Minimum Capacity (at .5C, 77°F)	95Ah
Expected Cycle Life	>4800 cycles w/1C charge and discharge rate, at 77°F, 80% DOD
Operating Specifications
Charge Method	Smart charger, constant current, constant voltage
Charge Voltage Range (Max 14.6V)	14.2 -14.6V
Continuous Charge Current	100A Max
Continuous Discharge Current	100A Max
Peak Instant Discharge Current (10 secs)	200A
Over Voltage Shutdown	15.6 +/-.2V
Discharge Cut-off Voltage	8V =/- .5V
Charge/Discharge Temperature	Minus 4° F to 131°F (with built in heater)
Storage Temperature	-4° F to 113° F
Self Disharge (stored at 50% SOC)	< 3%/month
Watt hours	1280 watt hours
Physical Specifications

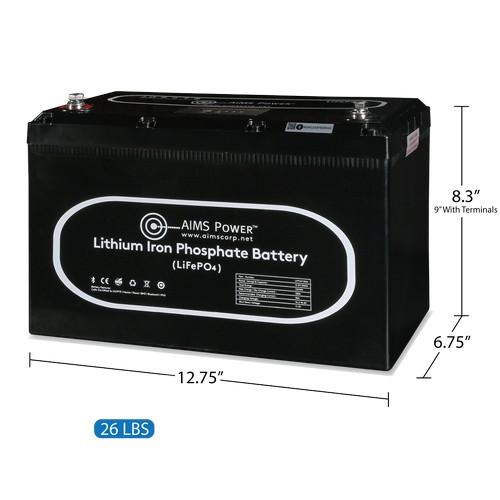

Battery Dimensions	12.75″L x 6.75″W x 8.3″H | 9″H w/terminals
Weight	26 lb
Shipping Weight	27 lb
Group Size	31
Battery post size	5/16″ 8M
BMS Operation
Over Charge Protection	Over charge alarm voltage: 3.55 +/- .05V cell 14V battery pack
Over charge detection delay time: 1000 ms
Over charge protection: 3.70 +/-.05V cell 14.8V battery pack
Over charge release voltage: 3.45 +/-.05V cell 13.8V battery pack
Over Discharge Protection	Over discharge alarm: 2.8V +/- .05V cell 11.2V battery
Over discharge detection delay time: 1000 ms
Over discharge protection: 2.5V +/- .10V cell 10V battery pack
Over discharge release: 2.8V cell 11.2V battery pack
Over Current Protection	Charge over current alarm: 60A
	Charge over current protection: 110A
	Charge over current detection delay time: 15S
	Charge over current release condition: Automatic release after 1 min and up to 3 times or charge
	Discharge over current protection: 115A
	Discharge over current detection delay time: 15S
	Discharge over current release condition: Automatic release after 1 min and up to 3 times or charge
Charge Low Temp Alarm	7°C | 44°F
Charge Low Temp Protection	0°C | 32°F
Charge Low Temp Protection Release	5°C | 41°F
Charge High Temp Alarm	50°C | 122°F
Charge High Temp Protection	55°C | 131°F
Charge High Temp Release	45°C | 113°F
Discharge Low Temp Alarm	Minus 10°C | 14°F
Discharge Low Temp Protection	Minus 20°C | Minus 4°F
Discharge Low Temp Protection Release	Minus 17°C | 1°F
Discharge High Temp Alarm	55°C | 131°F
Discharge High Temp Protection	60°C | 140°F
Discharge High Temp Protection Release	50°C | 122°F
Polarity Reverse Protection	Yes
Short Circuit Protection	Yes
UPC	840271008202
Warranty	10 Yr Manufacturer Defect Prorated – IP65 rated
Certification	Cells certified to UL1973 | UL9540A: IEC62619 | UN38.3| ROHS
