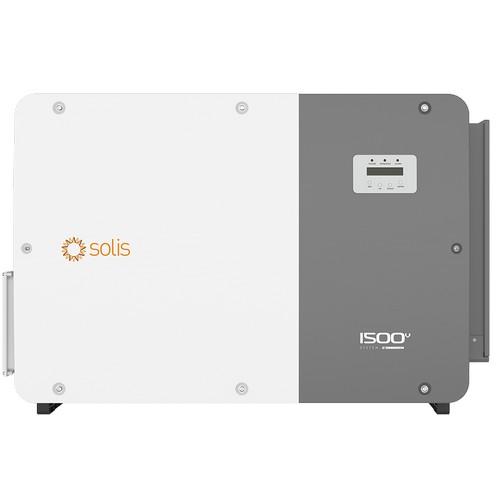

Solis-(125-255)K-EHV-5G-US

600V: 125K-PLUS / 185K / 185K-PLUS; 800V: 255K / 255K-PLUS

125-255kW three-phase utility-scale 1500 Vdc PV string inverters have 9 MPPT (125K) or 12 independent MPPTs (185 & 255K) with high-rated dc inputs that support "Y" type connection in DC side, up to 30A per DC input . Maximum string input current 15A, support bifacial modules access. Supports anti-PID function to improve system efficiency. High-precision intelligent PV string monitoring reduces fault location time.

125-255kW Three Phase Inverter
Leading Features

• > 1.5 DC/AC ratio
• UL 1741 SA and SB
• Type 4X, C5 Anti-Corrosion Level
• DC side supports "Y" connector
• Reserve DC energy storage access
• External signal control function
• High power tracking density 75MPPT/MW
• Compatible with 500W+ bifacial modules
• Fuse free design, safe and maintenance free
• Power line communication (PLC) (optional)
• AFCI protection, proactively reduces fire risk
• Intelligent string monitoring, smart I-V curve scan
• 9/12/14 MPPTs, max. efficiency 99.0% (CEC efficiency 98.3%)
• High quality components from globally recognized suppliers
• Integrated nighttime PID recovery for optimal module performance
• Remote firmware upgrade with simple operation (Requires the user to use Solis monitoring)
• Datasheet_Solis-(125-255)K-EHV-5G-US_USA_V2.3_2023_07 | Download
• Solis_Manual_(2.5-6)K_4G_ENX_V2.7 | Download

Input DC	Max. input voltage	1500 V	Rated voltage	950 V
	Start-up voltage	500 V	MPPT voltage range	480-1500 V
	Max. input current	9*30 A	Max. short circuit current	9*50 A
	MPPT number	9	Max. input strings number	18

Output AC	Rated output power	125 kW	Max. apparent output power	137.5 kVA
	Max. output power	137.5 kW	Rated grid voltage	3?/PE, 600 V
	Rated grid frequency	60 Hz	Max. output current	132.3 A
	Power factor	>0.99 (0.8 leading - 0.8 lagging)	THDi	<3%

Efficiency

Max efficiency

98.6%

CEC efficiency

98.3%

Protection

DC reverse-polarity protection

Yes

General Data	Dimensions(W*H*D)	46.1*30.3*15.1 in (1170*770*384 mm)	Weight	240 lbs (109 kg)
	Topology	Transformerless	Self consumption (night)	<2 W
	Relative humidity	0-100%	Ambient operating temperature range	-22F to 140F (-30C ~ +60C )
	Storage environment	-40F to 176F (-40C to 80C)	Enclosure type	TYPE 4X
	Cooling concept	Intelligent redundant fan-cooling	Max.operating altitude without derating	13,120ft (4000 m)
	Compliance	UL 1741SB, UL 1741SA, UL 1998, UL1699B, IEEE 1547-2018, FCC Part 15 (Class A &amp; B), CAN/CSA C22.2 107.1-1, California Rule 21

Features	DC connection	MC4 connector	AC connection	OT terminal (750 MCM)
	Display	LCD	Communication	RS485, Optional
