The images shown are for illustration purposes only and may not be an exact representation of the product

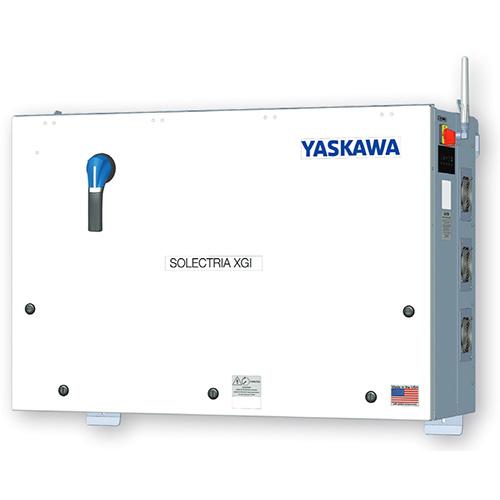

Yaskawa Solectria Solar, UUX002232, XGI 1500-175-480 Inverter, Transformerless, 175kW Power Rating with User-Selectable Overhead (175kW/175kVA or 175kW/200kVA), 1500VDC Max Input, 480VAC Output, 5 Year Standard Warranty, UL 1741SB certified Rule 21 compliant. Made in the USA.

  • Model: UUX002232
  • Manufactured by: Yaskawa Solectria Solar
  • Condition: New
  • Estimated Delivery: 1 to 2 Weeks
  • Lead Time To Ship May Vary
Price:

$24,590.02 $18,915.40

Manufacturer Info

(image for) Yaskawa Solectria Solar
SOLECTRIA XGI 1500-250 Series Inverters

The XGI 1500-250 and XGI 1500-200 feature SiC technology, high power and high efficiency that places them at the top end of the utility-scale string inverters in the market.

Yaskawa Solectria Solar designs all XGI 1500 utility-scale string inverters for high reliability and builds them with the highest quality components -- selected, tested and proven to last beyond their warranty. The XGI 1500 inverters provide advanced grid-support functionality and meet the latest IEEE 1547 and UL 1741 standards for safety.

The XGI 1500 inverters provide ideal solutions for ground-mounted utility-scale PV systems, with models available for service connections at 600 Vac and 480 Vac.. Designed and engineered in Lawrence, MA, the SOLECTRIA XGI inverters are assembled and tested at Yaskawa America's facilities in Buffalo Grove, IL. The XGI 1500 inverters are Made in the USA with global components, and are compliant with the Buy American Act.

XGI 1500-250 Features
NEW and MORE POWERFUL!
  • XGI 1500-250/250-600
  • XGI 1500-225/250-600
  • XGI 1500-200/200-480
  • XGI 1500-175/200-480
  • Industry-leading maximum DC/AC Ratio of 2.0
  • Accepts two input PV Output Circuits, with no overcurrent protection required
  • Made in the USA with global components
  • Buy American Act (BAA) compliant
  • 99.0% peak efficiency
  • Flexible solution for distributed and centralized system architecture
  • Advanced grid-support functionality Rule 21/UL1741SA
  • Robust, dependable and built to last
  • Lowest O&M and installation costs
  • Access all inverters on site via WiFi from one location
  • Remote diagnostics and firmware upgrades
  • SunSpec Modbus Certified
  • Tested compatible with the TESLA PowerPack Microgrid System
  • SOLECTRIA XGI 1500-250 Series Utility-Scale Inverters (pdf) | Download
  • SOLECTRIA XGI 1500-250 Series Inverters Installation and Operation Guide (pdf) | Download
Options
  • PV Source Circuit Combiners
  • Web-based monitoring
  • Extended warranty
